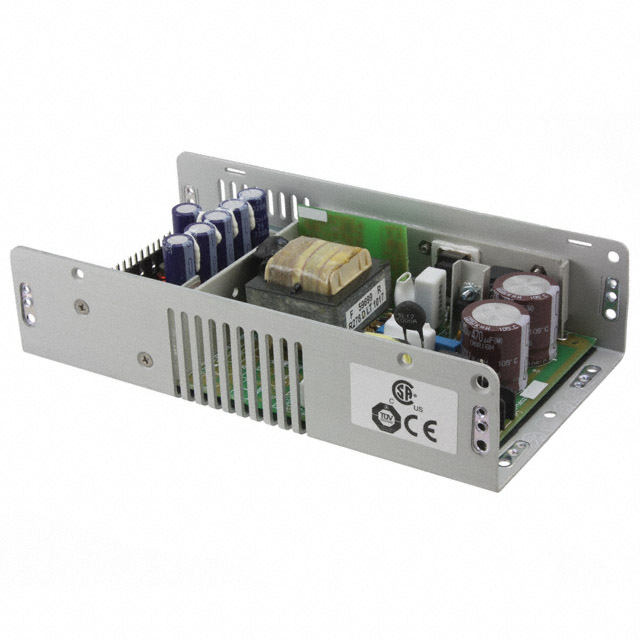

The Bel Power Solutions MAP130-1012 is an open frame AC/DC converter designed for industrial environments. It delivers a 12V output with a continuous current of 12A and a peak current of 11A, providing a total power of 130W.
Key electrical specifications include an efficiency of 80% and a universal input voltage range of 90-132 VAC and 175-264 VAC. The converter offers features such as adjustable output, remote sense, and overvoltage protection. It operates within a temperature range of 0°C to 70°C with derating.
Mechanically, the unit is housed in a U-channel chassis measuring 8.50 x 4.50 x 2.00 inches (215.9 x 114.3 x 50.8 mm) and is designed for chassis mounting. It meets various EMC standards and is approved by CB, cCSAus, and CE.
This power supply is suitable for ITE (Commercial) applications and boasts a Mean Time Between Failures (MTBF) greater than 100,000 hours.
90-132 VAC and 175-264 VAC.
12V nominal, adjustable from 11.4V to 15.75V.
10A continuous, 11A peak.
80% typical.
0°C to 70°C with derating.
215.9mm x 114.3mm x 50.8mm (8.50 x 4.50 x 2.00 inches).
2.6 kV.
