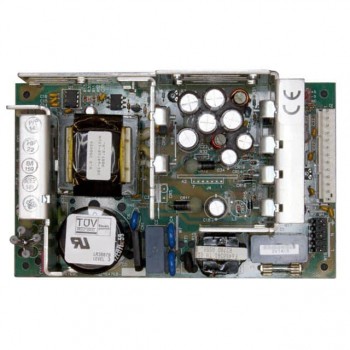

The Bel Power Solutions MAP110-4300 is an open-frame AC/DC converter designed for commercial and industrial applications. It operates with a universal input voltage range of 85-264 VAC and delivers up to 80W of power, with a forced air rating of 110W.
This converter features four outputs: 3.3V at 12A, 5V at 5A, -12V at 1A, and 12V at 1A. It offers an efficiency of 80% and an isolation voltage of 4.242 kV. The operating temperature range is 0°C to 70°C with derating.
Key features include adjustable output and remote sense capabilities, making it suitable for various ITE (Commercial) applications. The unit is chassis mountable and conforms to an industry-standard footprint with dimensions of 7.00" L x 4.30" W x 1.97" H (177.8mm x 109.2mm x 50.0mm).
Compliance is indicated by CB, cCSAus, and CE approvals. The RoHS status is RoHS3 Compliant, MSL is 1 Unlimited, and REACH status is REACH Unaffected.
The input voltage range for the MAP110-4300 is 85-264 VAC.
The MAP110-4300 provides four output voltages: 3.3V, 5V, -12V, and 12V.
The MAP110-4300 has a maximum power output of 80W, which can be increased to 110W with forced air cooling.
The operating temperature range for the MAP110-4300 is 0°C to 70°C (with derating).
The MAP110-4300 has an efficiency of 80%.
The MAP110-4300 measures 177.8mm in length, 109.2mm in width, and 50.0mm in height.
The MAP110-4300 uses chassis mount for installation.
