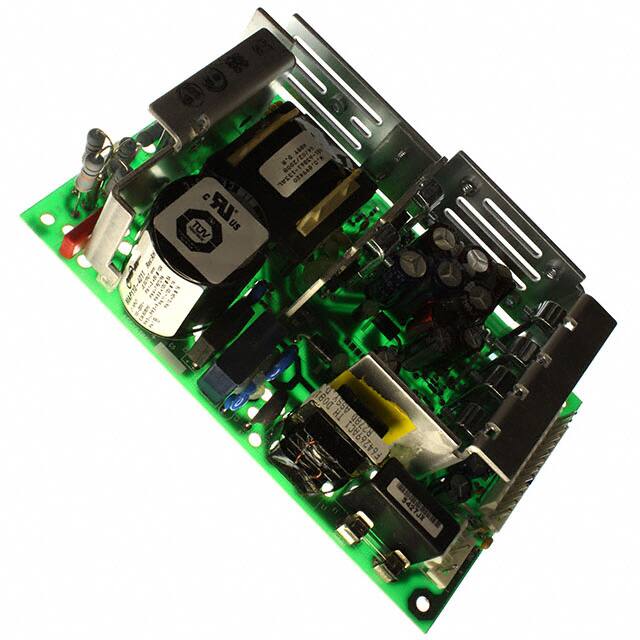

The Bel Power Solutions MAP110-4011 is an open frame AC/DC converter designed for industrial applications. It features a universal input voltage range of 85-264 VAC, making it suitable for global use.
This converter delivers a total power of 80W (110W forced air) and offers multiple outputs: +5V, +12V, -12V, and 24V. Key electrical specifications include 80% efficiency, line regulation of 0.2% typical, and load regulation of 0.5% typical. It also provides a voltage isolation of 4.242 kV.
The MAP110-4011 is designed for chassis mounting and has dimensions of 7.00" L x 4.30" W x 1.97" H (177.8mm x 109.2mm x 50.0mm). It operates within a temperature range of 0°C to 70°C with derating. The unit is CE marked and RoHS3 compliant.
With features like adjustable output and remote sense, this converter is a versatile solution for ITE (Commercial) applications requiring reliable power conversion.
The MAP110-4011 provides output voltages of +5V, +12V, -12V, and 24V.
The MAP110-4011 has a power output of 80W, or 110W with forced air cooling.
The input voltage range for the MAP110-4011 is 85-264 VAC.
The operating temperature range is 0°C to 70°C, with derating.
The dimensions are 177.8mm x 109.2mm x 50.0mm.
Yes, the MAP110-4011 is RoHS3 compliant.
