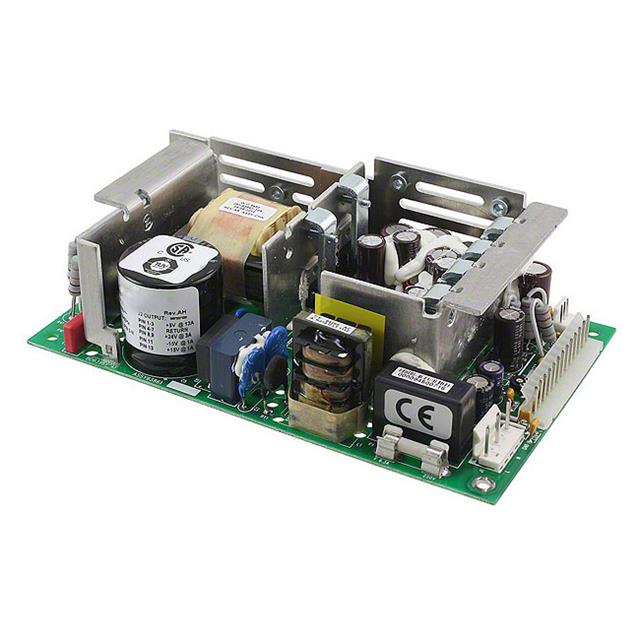

The Bel Power Solutions MAP110-1024G is an open-frame AC/DC converter designed for industrial requirements. It offers a universal input voltage range of 85-264 VAC and provides a single 24V output.
This converter delivers 90W of power under convection cooling and up to 120W with forced air. Key electrical specifications include 80% efficiency, line regulation of 0.1%, and load regulation of 0.5%. The output voltage is adjustable within a range of 22.8V to 29.2V, with a nominal setting accuracy of 0.05%.
Designed for chassis mounting, the MAP110-1024G has dimensions of 177.8mm x 109.2mm x 50.0mm. It operates within a temperature range of 0°C to 70°C with derating and features overvoltage protection. The unit is CE marked and complies with various EMC standards, including EN 61204-3 and EN 55032.
The MAP110-1024G has a nominal output voltage of 24V, with an adjustable range from 22.8V to 29.2V.
The power rating is 90W under convection cooling and 120W with forced air.
The input voltage range is 85-264 VAC.
The dimensions are 177.8mm x 109.2mm x 50.0mm.
The operating temperature range is 0°C to 70°C with derating.
