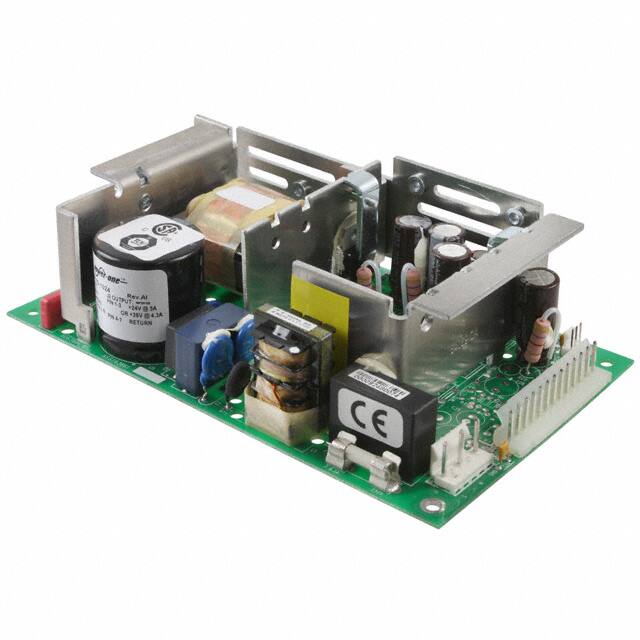

The Bel Power Solutions MAP110 series, including the MAP110-1024 model, offers a low-cost, board-only power solution with universal input (85-264 VAC) suitable for industrial requirements. This open-frame converter provides a 24V output voltage with a convection-cooled current of 3.8A and a forced air current of 5A, delivering up to 90W of power.
Key features include adjustable output voltage, remote sense capability, and fixed-frequency operation. The unit conforms to an international standard footprint measuring 7.0" x 4.3" x 1.97" (177.8 x 109.2 x 50.0 mm) and utilizes Molex connectors for input and output.
Compliance with EMC standards such as EN 61204-3, EN 55032, EN 61000-3-2, and EN 61000-3-3 is met. The MAP110-1024 is CE Marked to the Low Voltage Directive and is RoHS compliant. It offers overvoltage protection on the main output and has an MTBF greater than 134,000 hours. The operating temperature range is 0°C to 70°C with derating.
85-264 VAC.
24V output, 3.8A convection cooled, 5A forced air.
0°C to 70°C with derating.
Chassis mount, open frame.
80%.
CB, cCSAus, CE.
Greater than 134,000 hours.
