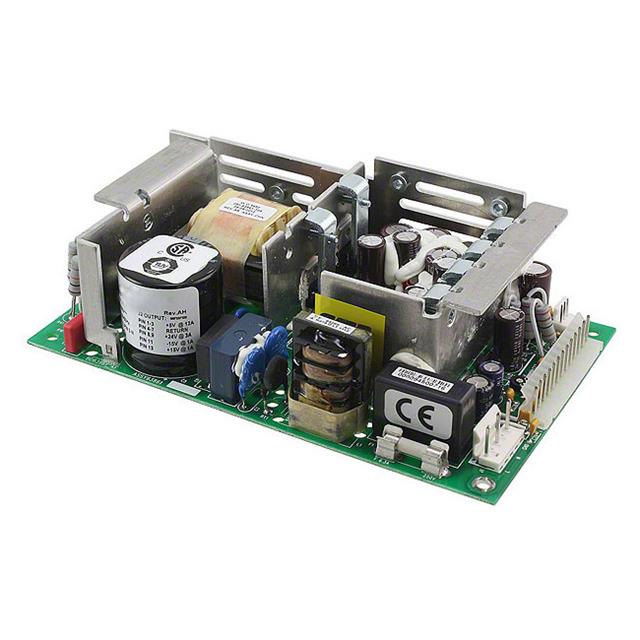

The Bel Power Solutions MAP110-1012G is a single-output open frame AC/DC converter from the MAP110 series. It accepts a universal input of 85-264 VAC and provides a regulated 12V output with a convection-cooled current rating of 7.5A (90W) and a forced-air rating of 10A (120W). The output voltage is adjustable from 11.25V to 12.75V.
Key electrical specifications include 0.1% line regulation, 0.5% load regulation, 1% ripple and noise, and an initial setting accuracy of 11.97V to 12.02V. The converter offers 80% efficiency and 4.242 kV input-to-output isolation. Features include remote sense, overvoltage protection, and universal input.
The converter is housed in an industry-standard footprint measuring 177.8mm x 109.2mm x 50.0mm (7.00" x 4.30" x 1.97") and is designed for chassis mount installation. It is intended for ITE (commercial) applications and carries CB, cCSAus, and CE approvals. The MAP110 series complies with EMC standards EN 61204-3, EN 55032, EN 61000-3-2, and EN 61000-3-3.
The MAP110-1012G provides a single 12V output, adjustable from 11.25V to 12.75V.
The converter is rated for 90W convection cooled and 120W with forced air cooling.
The universal input range is 85-264 VAC.
The operating temperature range is 0°C to 70°C with derating.
The efficiency is 80%.
It is designed for chassis mount installation.
It carries CB, cCSAus, and CE approvals.
