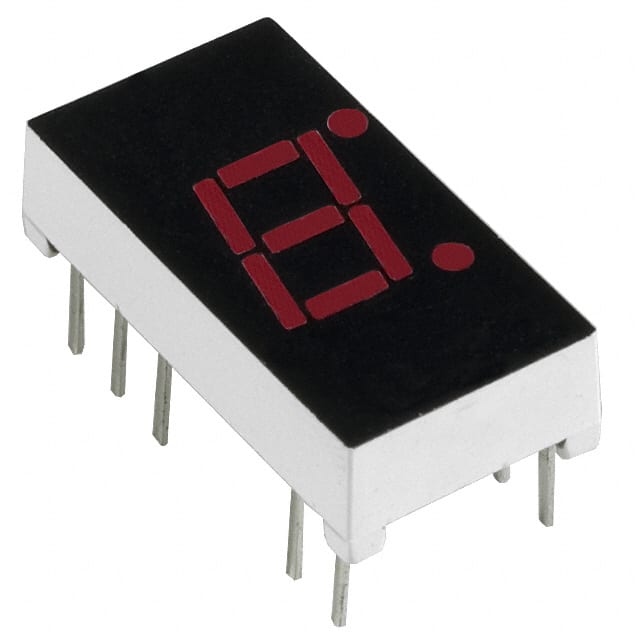

The MAN71A is a single-digit, 0.30-inch (7.62mm) 7-segment LED display manufactured by ON Semiconductor. This red display features a common anode configuration and a digit height of 0.30 inches.
Key electrical specifications include a typical forward voltage of 2.2V and a forward current of 20mA, with a luminous intensity of 0.35mcd at 20mA. The maximum power dissipation is rated at 480mW, and the peak emission wavelength is 660nm.
Packaged in a 14-DIP format, the MAN71A is designed for through-hole mounting. Its dimensions are 0.738 inches in height, 0.386 inches in width, and 0.200 inches in depth. The operating temperature range is from -40°C to 85°C.
This display is suitable for various indicator applications where a clear, single-digit numerical display is required. Its robust specifications and standard package make it a reliable choice for electronic designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MAN71A is a 7-segment display in red.
The typical forward voltage for the MAN71A is 2.2V at 20mA.
The luminous intensity of the MAN71A is 0.35mcd at 20mA.
The MAN71A comes in a 14-DIP package for through-hole mounting.
The MAN71A operates between -40°C and 85°C.
