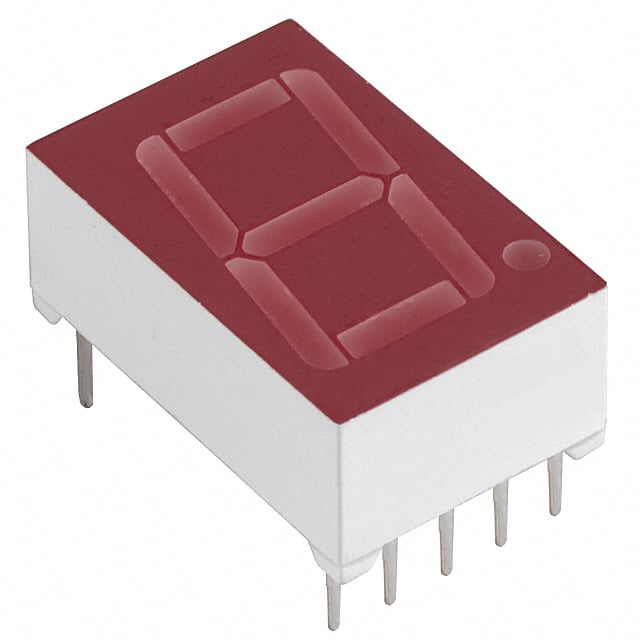

The On Semiconductor MAN6960 is a single-digit, 7-segment LED display module designed for character and numeric display applications. This component features a prominent 0.56-inch digit height, making it suitable for various visibility requirements. The display is red in color and utilizes a common anode pin configuration.
Key electrical specifications include a typical forward voltage of 2.5V and a maximum forward current of 20mA, with a maximum power dissipation of 600mW. The luminous intensity is rated at 2.2mcd, and the peak wavelength is 635nm. The module's dimensions are 0.750" H x 0.480" W x 0.315" D.
Packaged in a 10-DIP format with 0.600" lead spacing, the MAN6960 is designed for through-hole mounting. It is classified as RoHS3 Compliant and has a Moisture Sensitivity Level (MSL) of 1, indicating unlimited shelf life under recommended conditions. This component is suitable for a wide range of electronic instrumentation and display needs where clear numeric indication is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The digit height of the MAN6960 is 0.56 inches (14.22mm).
The MAN6960 LED display is red.
The operating voltage for the MAN6960 is a maximum of 2.5V.
The forward current for the MAN6960 is 20mA.
The MAN6960 is supplied in a 10-DIP (0.600", 15.24mm) package.
The MAN6960 is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the MAN6960 is 1.
