| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
76 pcs
|
76 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Common Pin | |
| Current | |
| Digit | |
| Display Type | |
| Lead Spacing | |
| Millicandela Rating | |
| Number of Characters | |
| Power Dissipation (Max) | |
| Voltage | |
| Wavelength |

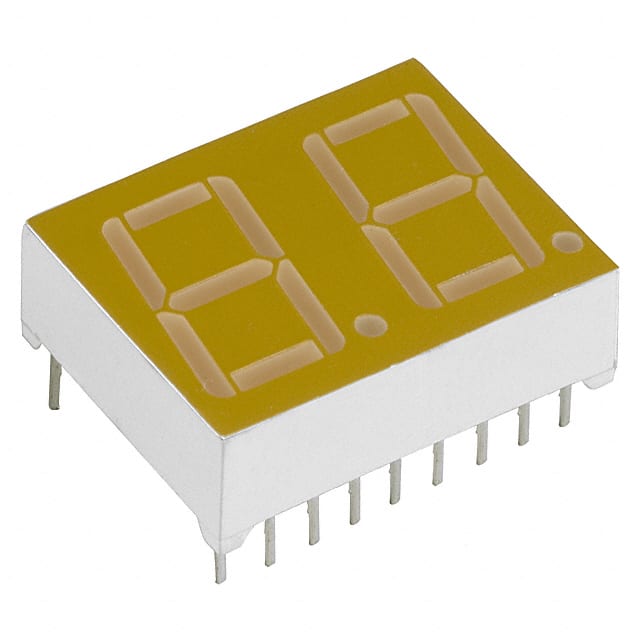

The ON Semiconductor MAN6610 is a dual-digit, 7-segment LED display module designed for character and numeric display applications. This component features a bright orange color and a digit height of 0.56 inches (14.22mm), ensuring good readability.
With a common anode configuration, the MAN6610 operates at a maximum voltage of 2.5V and a current of 20mA per segment. It offers a millicandela rating of 2.2mcd and a wavelength of 630nm. The display module has a maximum power dissipation of 1.2W.
The physical dimensions of the display are 0.750" height by 0.985" width by 0.315" depth. It comes in an 18-DIP package with a 0.600" (15.24mm) lead spacing, suitable for through-hole mounting.
This display is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1, indicating it is suitable for a wide range of manufacturing environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The digit height for the MAN6610 display is 0.56 inches (14.22mm).
The MAN6610 LED display is orange.
The maximum operating voltage for the MAN6610 is 2.5V.
The typical current per segment for the MAN6610 is 20mA.
The MAN6610 is supplied in an 18-DIP package with a 0.600" (15.24mm) lead spacing.
