| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,904 pcs
|
4904 pcs | On Request | 1 | On Request | On Request | 15+ | On Request | On Request | |
|
1,140 pcs
|
1140 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
516 pcs
|
516 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Halogen Free | |
| Height | |
| Inductance | |
| LQ Measuring Frequency | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Saturation Current (Typical/Maximum @ ⊿L=30%) | |
| Shielding | |
| Standard Packaging Quantity | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Characteristic | |
| Temperature Rise Current (Typical/Maximum @ ⊿T=40℃) | |
| Tolerance | |
| Type | |
| Width | |
| dcr (Typical/Maximum) |

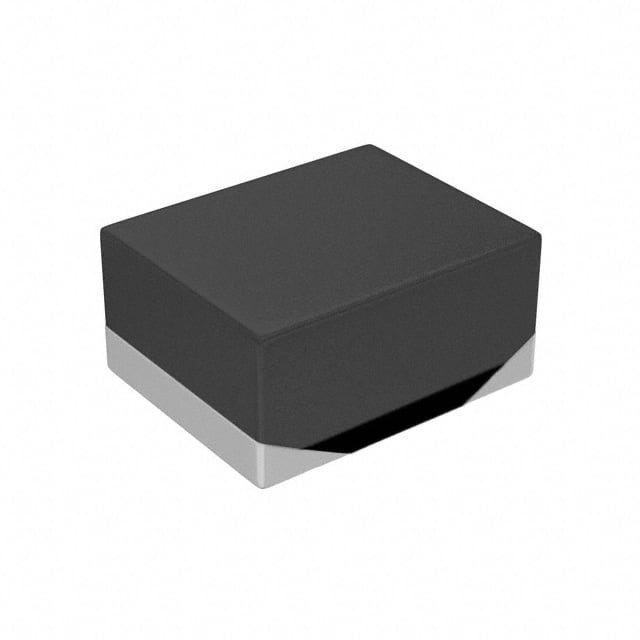

The Taiyo Yuden MAKK2016T2R2M is a wire wound chip power inductor from the MA series, featuring a drum core construction. It offers an inductance of 2.2 µH with a tolerance of ±20% and a rated current of 1.5 A. The inductor has a maximum DC resistance of 0.16 Ω and operates within a temperature range of -40°C to +105°C.
This shielded inductor is housed in an 0806 (2016 Metric) surface mount package, measuring 2.00mm in length and 1.60mm in width, with a maximum height of 1.00mm. It is suitable for reflow soldering processes.
The saturation current is rated at 1.5 A (max) for a 30% inductance drop, with a typical value of 1.75 A. The temperature rise current is also 1.5 A (max) for a 40°C rise, with a typical value of 1.65 A. The inductance change over temperature is within ±15%.
This component is RoHS3 compliant and Halogen Free, making it suitable for various electronic applications requiring reliable power inductance.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.04 | $0.04 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance of the MAKK2016T2R2M inductor is 2.2 µH with a tolerance of ±20%, measured at 2 MHz.
The MAKK2016T2R2M has a rated current of 1.5 A.
The maximum DC Resistance (DCR) for the MAKK2016T2R2M is 0.16 Ω, with a typical value of 0.131 Ω.
The operating temperature range for this inductor is -40°C to +105°C.
The MAKK2016T2R2M is available in an 0806 (2016 Metric) package for surface mounting.
The MAKK2016T2R2M is supplied in standard packaging of 3000 pieces on an embossed tape and reel.
