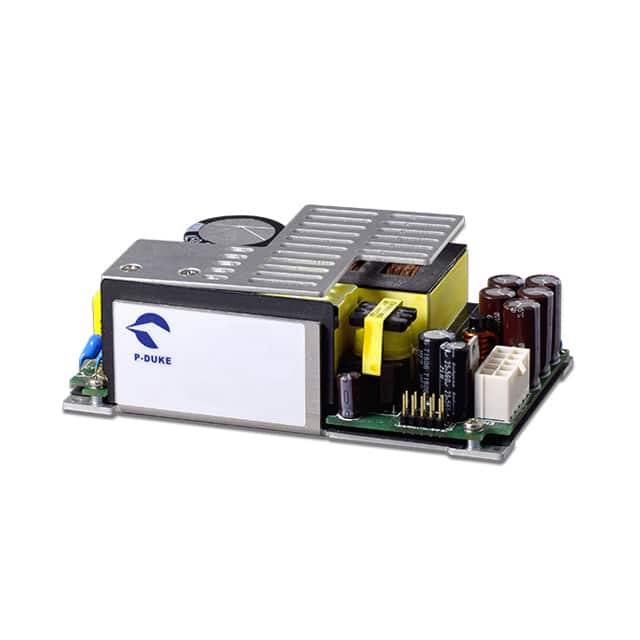

The MAH450US24 from P-DUKE Technology, Inc. is an enclosed AC/DC power converter designed for ITE (Commercial) and Medical applications. It offers a robust 319W power output, with a peak capability of 450W under forced air conditions, and provides a stable 24V output.
Key electrical specifications include an efficiency of 93% and an output current of 13.3A. The converter features adjustable output and universal input, enhancing its flexibility in various system designs. It also boasts a high isolation voltage rating of 4 kV.
Mechanically, the unit is designed for chassis mounting and has dimensions of 127.0mm x 76.2mm x 40.1mm. The operating temperature range is -40°C to 85°C, with derating applied at higher temperatures. The MAH450US24 complies with safety standards including 60601-1, 60950-1, and 62368-1, and carries approvals from CB, CE, cURus, and FCC.
This converter is suitable for applications requiring reliable power conversion in commercial and medical environments. Its enclosed type and chassis mount design facilitate integration into larger systems.
The MAH450US24 is an enclosed AC/DC converter.
The MAH450US24 is designed for chassis mounting.
The efficiency of the MAH450US24 is 93%.
Key features include adjustable output and universal input.
The isolation voltage rating is 4 kV.
It is suitable for ITE (Commercial) and Medical applications.
It complies with 60601-1, 60950-1, and 62368-1 standards.
