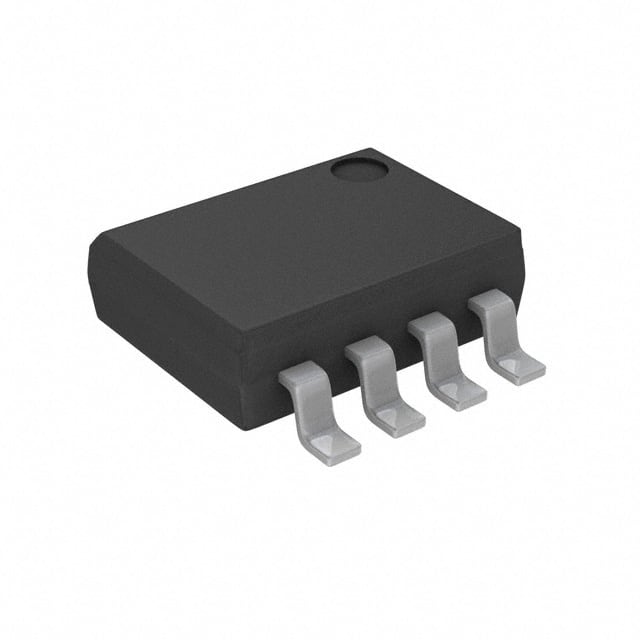

The MACOM MADR-009269-000100 is a single channel CMOS driver utilizing high-speed analog CMOS technology for efficient operation in microwave switching applications. It translates TTL control inputs into complementary gate control voltages suitable for GaAs FET switches and attenuators, or for driving PIN diode circuits with outputs nominally switched between +5V and -5V.
Key electrical specifications include a maximum supply voltage of 5.5V, with typical rise and fall times of 500ns. The device features complementary outputs and positive voltage control, with TTL input levels. It is housed in a low-cost plastic SOIC-8 package, suitable for surface mount applications.
This driver is designed for low power dissipation at moderate to high speeds. The output high level can be optionally set between 0 to 2V relative to GND, optimizing intermodulation products for FET control devices at lower frequencies. The component is RoHS compliant and operates within a temperature range of -40°C to +85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating supply voltage ranges from 4.5 V to 5.5 V.
This component is available in an 8-SOIC package.
The typical rise time is 500 ns.
The operating temperature range is -40°C to +85°C.
