| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
26,544 pcs
|
26544 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
11,799 pcs
|
11799 pcs | On Request | 1 | On Request | On Request | 06+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance | |
| Capacitance @ Vr, F | |
| Current | |
| Diode Type | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature Range | |
| Resistance @ If, F | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage |

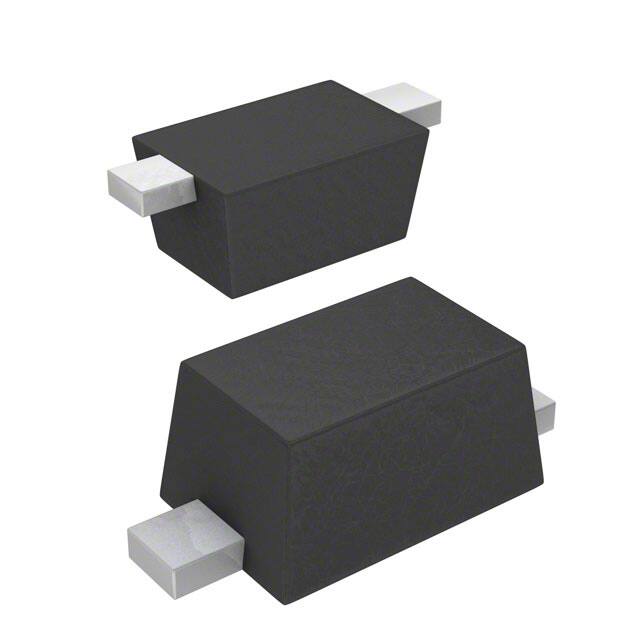

The MADP-008120-12790T is a silicon PIN diode from MACOM Technology Solutions, designed for low loss and high isolation switching applications. It is housed in an industry standard SC-79 surface mount plastic package and is RoHS compliant with lead-free matte tin plating.
Key electrical specifications include a maximum reverse voltage of 100V, a maximum forward current of 150mA, and a typical capacitance of 0.060pF (0.150pF maximum) at 10V and 1.8GHz. The diode offers a typical series resistance of 2.5 Ohms at 10mA and 1.8GHz, with a carrier lifetime of 200ns and an I-region thickness of 19um.
The device operates over a temperature range of -65°C to +125°C with a maximum junction temperature of +175°C. It is supplied on tape and reel for automated assembly, with the "T" suffix indicating tape and reel packaging.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.27 | $2.27 |
| 10+ | $1.68 | $1.68 |
| 25+ | $1.54 | $1.54 |
| 100+ | $1.37 | $1.37 |
| 250+ | $1.30 | $1.30 |
| 500+ | $1.27 | $1.27 |
| 3,000+ | $1.16 | $1.16 |
| 6,000+ | $1.14 | $1.14 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum reverse voltage is 100V.
The maximum forward current is 150mA DC.
Typical capacitance is 0.060pF, with a maximum of 0.150pF at 10V and 1.8GHz.
It is available in an SC-79 (SOD-523) surface mount plastic package.
The operating temperature range is -65°C to +125°C.
