| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Package / Case | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

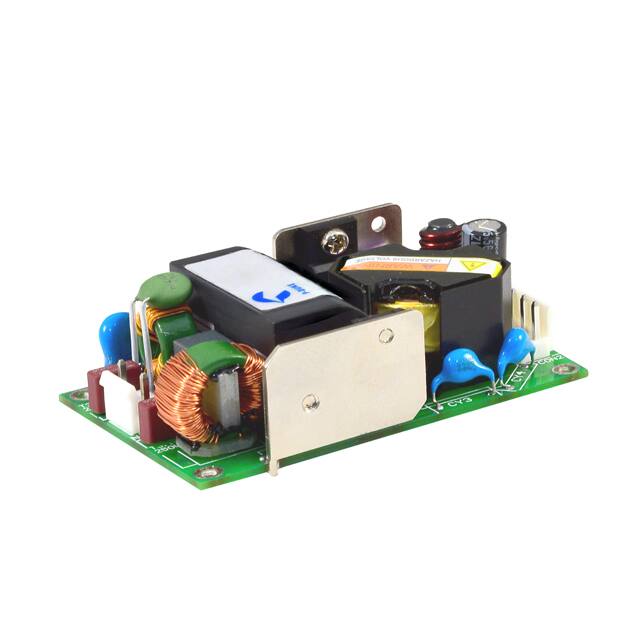

The P-DUKE Technology, Inc. MAD40US12D is an AC/DC converter designed for external or internal use, delivering 40W of power with a 12V output. It operates with a universal input voltage range of 85 to 264 VAC or 120 to 370 VDC, making it suitable for global applications.
Key electrical specifications include an efficiency of 92% and a current rating of 3.34A. The converter offers adjustable output and features a high isolation voltage of 4kV. It is designed to operate reliably within a wide temperature range of -40°C to 85°C, with derating applied.
This AC/DC converter meets several industry standards, including 60601-1, 60950-1, and 62368-1, and carries approval agency certifications such as CB, CE, cURus, and FCC. It is housed in an open frame, chassis mount package with dimensions of 76.2mm x 50.8mm x 23.9mm.
The MAD40US12D is compliant with RoHS3 standards and has a Moisture Sensitivity Level (MSL) of 1, indicating unlimited usability under standard conditions. Its applications include ITE (Commercial) and Medical sectors.
The MAD40US12D accepts 85-264 VAC or 120-370 VDC input.
The MAD40US12D has 92% efficiency.
The MAD40US12D operates from -40°C to 85°C with derating.
The MAD40US12D provides 4 kV isolation.
The converter measures 76.2mm x 50.8mm x 23.9mm.
The MAD40US12D uses chassis mount.
