| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

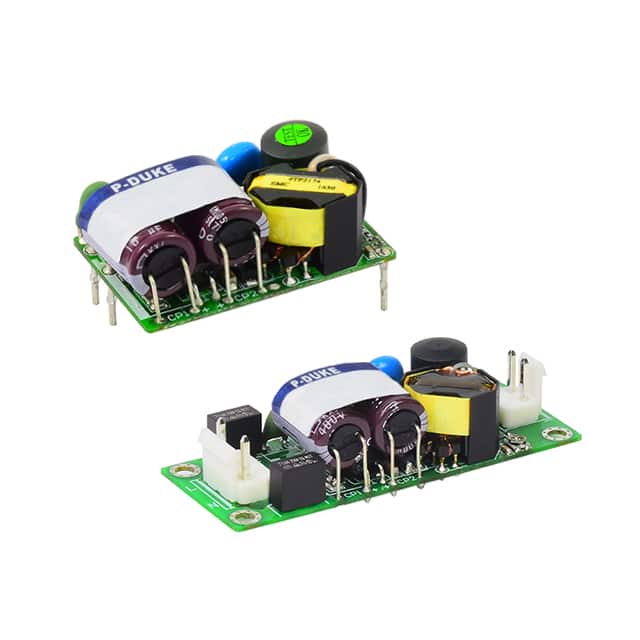

The P-DUKE Technology, Inc. MAC15US05B-D is an open-frame AC/DC converter designed for ITE (Commercial) and Medical applications. It provides a 5V output voltage with a maximum current of 3A, delivering 15W of power.
This converter accepts a wide input voltage range of 85 to 264 VAC or 120 to 370 VDC, with an efficiency of 86%. Key features include adjustable output and universal input capabilities. The operating temperature range is -40°C to 85°C with derating.
Mechanically, the MAC15US05B-D has dimensions of 38.1mm x 25.4mm x 20.8mm and is designed for through-hole mounting in a 5-DIP Module package. It has received approvals from CB, CE, cURus, and FCC.
This model is suitable for applications requiring a reliable and compact power solution with safety agency certifications.
The MAC15US05B-D provides a 5V output voltage and 15W of power.
The input voltage range is 85 to 264 VAC or 120 to 370 VDC.
The MAC15US05B-D uses through-hole mounting.
The operating temperature range is -40°C to 85°C, with derating.
The dimensions are 38.1mm in length, 25.4mm in width, and 20.8mm in height.
