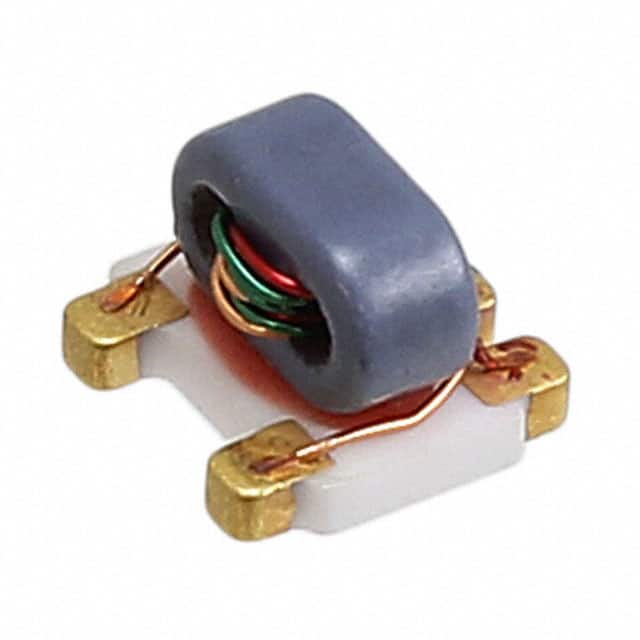

MABAES0061 The MACOM Technology Solutions MABAES0061 is a 1:4 RF flux coupled transformer designed for surface mount applications. It operates across a frequency range of 2MHz to 800MHz.
Mfr Part #:

MABAES0061

Available from 3 distributors
Mfr Name: MACOM Technology Solutions
MACOM Technology Solutions
The MACOM Technology Solutions MABAES0061 is a 1:4 RF flux coupled transformer designed for surface mount applications. It operates across a frequency range of 2MHz to 800MHz.
✓ Total Stock: 26,985 pcs
$ Price Range: $0.99

MABAES0061 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
19,420 pcs
On Request
19420 pcs On Request 1 On Request On Request 21+ On Request On Request
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
4,565 pcs
On Request
4565 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
3,000 pcs
On Request
3000 pcs On Request 1 On Request On Request 24+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MABAES0061 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Dielectric Withstanding Voltage
Frequency Range
Impedance
Insertion Loss (Max)
Mounting Type
Operating Temperature
Tape & Reel
View Similar Products (0)

MABAES0061 Description

Short technical summary and product information.

The MABAES0061 from MACOM Technology Solutions is a RoHS compliant RF flux coupled step-up transformer with an impedance ratio of 1:4. It is designed for surface mount applications and is available on tape and reel, making it suitable for high-volume manufacturing processes.



This transformer operates within a frequency range of 2 MHz to 800 MHz, offering a maximum insertion loss of 3.0 dB. It also features an amplitude unbalance of up to 1.00 dB and a phase unbalance of up to 10° across its specified frequency bands. The device can handle an RF input power of 250 mW and a DC current of up to 240 mA.



Packaged in a 6-SMD (5 Leads), Flat Lead configuration, the MABAES0061 is ideal for applications in wireless networking and communication, including single to balanced mode conversion and impedance matching. Its operating temperature range is -55°C to +85°C.

MABAES0061 Quick Information

Product Type: Balun
Canonical Name: RF Flux Coupled Transformer
Subcategory: RF Flux Coupled Transformer

MABAES0061 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MABAES0061 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

MABAES0061 Features

  • 1:4 impedance ratio transformer.
  • Operates from 2 MHz to 800 MHz.
  • Surface mount 6-SMD package.
  • Available on tape and reel.
  • RoHS3 compliant device.

MABAES0061 Applications

  • Ideal for wireless networking.
  • Used in communication systems.
  • Suitable for impedance matching.
  • Facilitates mode conversion.

MABAES0061 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the frequency range of the MABAES0061 transformer?

The MABAES0061 transformer operates from 2 MHz to 800 MHz.

What is the impedance ratio of the MABAES0061?

The impedance ratio of the MABAES0061 is 1:4.

What is the maximum insertion loss for the MABAES0061?

The maximum insertion loss for the MABAES0061 is 3.0 dB between 2 MHz and 800 MHz.

What is the operating temperature range for the MABAES0061?

The MABAES0061 operates within a temperature range of -55°C to +85°C.

What type of package is the MABAES0061 transformer in?

The MABAES0061 transformer is in a 6-SMD (5 Leads), Flat Lead package.

How is the MABAES0061 transformer mounted?

The MABAES0061 transformer is designed for surface mount installation.
