| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15,999 pcs
|
15999 pcs | On Request | 1 | On Request | On Request | 20+ | On Request | On Request | |
|
88 pcs
|
88 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-04-28 23:15:25 |
| Category | |
| Manufacturer Name | |
| Frequency Range | |
| Impedance | |
| Insertion Loss (Max) | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Return Loss (Min) | |
| Tape & Reel | |
| Termination Style |

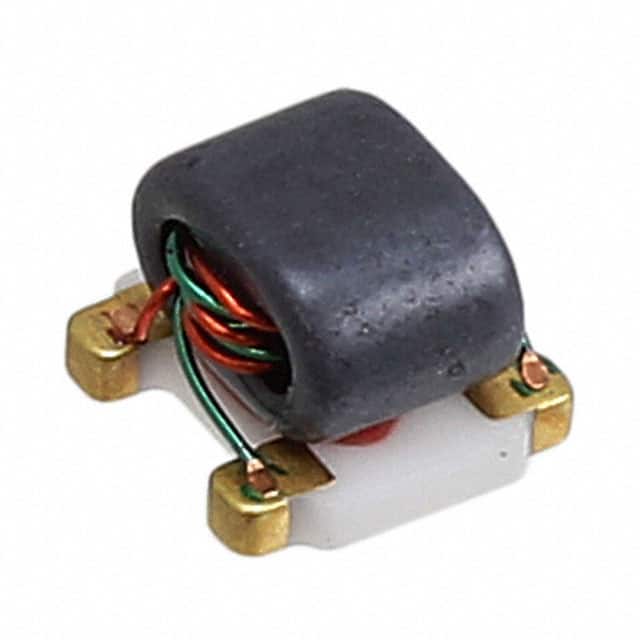

The MACOM MABACT0059 is a 1:1 transmission line balun designed for a wide frequency range of 4.5 MHz to 3000 MHz. This component is housed in a 6-SMD flat lead package, suitable for surface mounting.
Key electrical specifications include an impedance of 1:1, a minimum input return loss of 15 dB, and a maximum insertion loss of 8.4 dB across its operating frequency range. It also offers good amplitude and phase balance. The balun is rated for a maximum RF power of 500 mW and a DC current of 500 mA, with an operating temperature range of -40°C to +85°C.
The windings are welded to the package substrate for enhanced reliability and to eliminate lead content. This design makes the MABACT0059 ideally suited for CATV and Satellite STB/Subscriber applications, providing excellent temperature stability.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MABACT0059 balun operates from 4.5 MHz to 3 GHz.
The impedance of the MABACT0059 balun is 1:1.
The maximum insertion loss for the MABACT0059 balun is 8.4 dB.
The operating temperature range for the MABACT0059 is -40°C to +85°C.
The MABACT0059 is supplied in a 6-SMD flat lead package.
The MABACT0059 is RoHS3 Compliant.
