| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | 1512/ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Frequency Range | |
| Impedance | |
| Insertion Loss (Max) | |
| Mounting Type | |
| Operating Temperature | |
| Phase Difference | |
| Return Loss (Min) | |
| Tape & Reel |

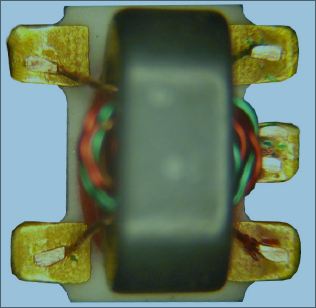

The MABA-011013 from MACOM Technology Solutions is a transmission line transformer designed for balun applications. It operates across a wide frequency range of 45 MHz to 1200 MHz, making it suitable for CATV, Broadband, and FTTx applications.
This balun features a 1:1 impedance ratio and can be used in both 50 Ohm and 75 Ohm systems. Key electrical specifications include insertion loss typically ranging from 0.8 dB to 1.5 dB depending on the frequency band, and amplitude and phase balance within ±1.1 dB and ±10 degrees respectively. The input return loss is a minimum of 15 dB.
Designed for surface mounting, the MABA-011013 comes in a 4-SMD module package and is compatible with 260°C reflow soldering. It is available on tape and reel for automated assembly. The component offers excellent temperature stability and operates within a temperature range of -40°C to +100°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MABA-011013 operates from 45 MHz to 1200 MHz.
The impedance ratio is 1:1.
The maximum insertion loss is 1.5 dB across the specified frequency bands.
The operating temperature range is -40°C to +100°C.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
The REACH status is REACH Unaffected.
