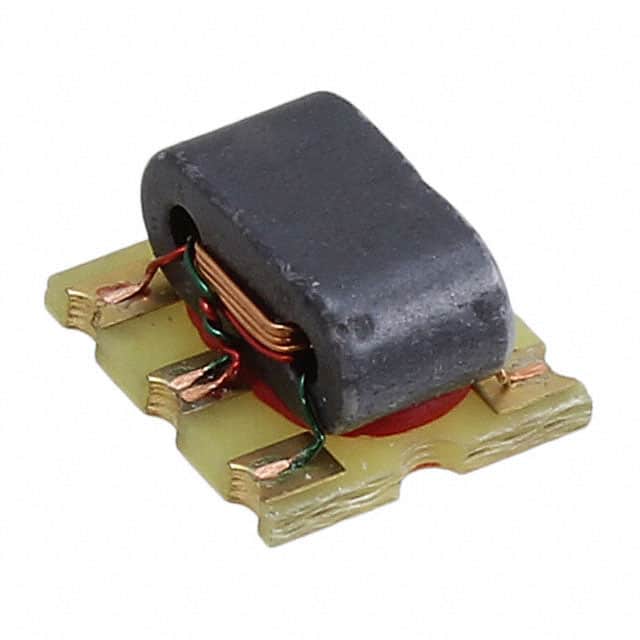

The MACOM Technology Solutions MABA-011002 is a 4:1 step down balun transformer designed for broadband applications. It features a wide frequency range from 5 MHz to 200 MHz, making it suitable for various RF circuits.
This transformer is housed in a 6-SMD, No Lead surface mount package, facilitating easy integration into PCB designs. It offers excellent performance under DC bias current, even when the current is imbalanced through the outputs. The device is also 260°C reflow compatible and RoHS compliant.
Key electrical specifications include a maximum insertion loss of 3.6 dB, amplitude balance up to ±1.4 dB, and phase balance up to ±9 degrees across its operating frequency range. The input return loss is a minimum of 3 dB at higher frequencies and up to 17 dB at lower frequencies. It supports an input RF power of 1W and a DC bias current greater than 900 mA, with an internal load dissipation of 0.125W. The operating temperature range is -40°C to +85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The frequency range is 5 MHz to 200 MHz.
The maximum insertion loss is 3.6 dB.
The impedance ratio is 4:1.
The operating temperature range is -40°C to +85°C.
It is a 6-SMD, No Lead surface mount package.
Yes, it is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
