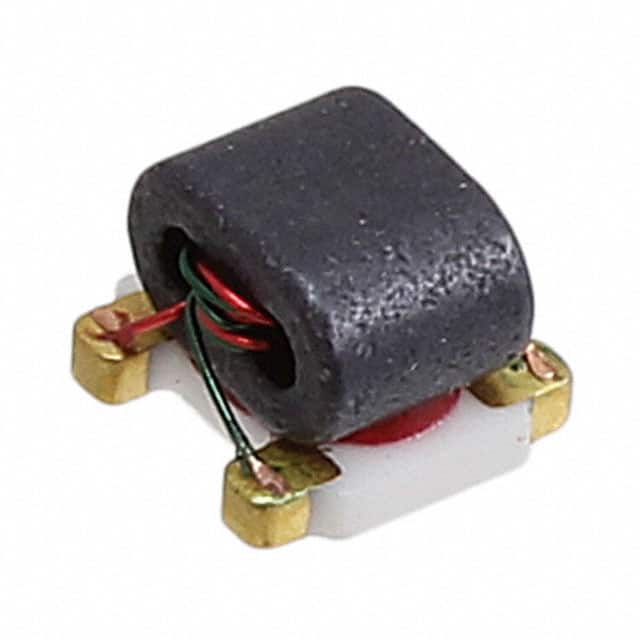

MABA-010245-CT1160

The MACOM Technology Solutions MABA-010245-CT1160 is a 1:1 transmission line transformer operating across a broad frequency range from 46 MHz to 1002 MHz. This component features a surface mount package, making it suitable for automated assembly processes. The transformer is designed with welded windings for enhanced reliability and to eliminate lead content.

Key electrical specifications include a typical insertion loss of 0.1 dB and a maximum of 0.7 dB, with amplitude balance typically within 0.3 dB and phase balance within ±2.5º. The input return loss is a minimum of 17.5 dB across its operating frequency range. It is rated for a maximum RF power of 250 mW and a DC current of over 600 mA at 5 V.

The operating temperature range is from -40°C to +85°C, and storage temperature ranges from -40°C to +100°C. The device is RoHS3 compliant and lead-free, designed for compatibility with 260°C reflow processes. It is available on tape and reel, facilitating high-volume manufacturing.

This transformer is ideally suited for applications such as CATV broadband and Satellite Set-Top Box (STB) subscriber systems. Its robust construction and wide frequency coverage make it a versatile component for RF signal management.
