| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,854 pcs
|
1854 pcs | On Request | 1 | On Request | On Request | 1127+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Frequency Range | |
| Impedance | |
| Insertion Loss (Max) | |
| Mounting Type | |
| Operating Temperature | |
| Storage Temperature | |
| Tape & Reel |

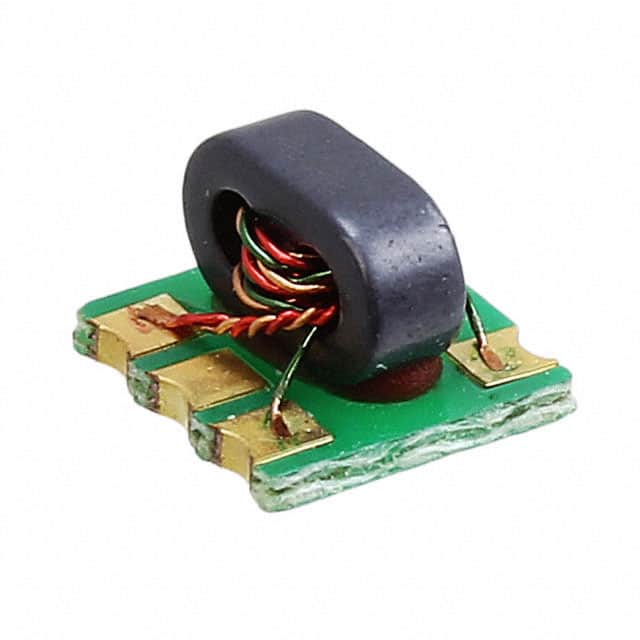

The MABA-007871-CT1A40 is a 1:1 RF transmission line step-up transformer in a low-cost, surface mount package, ideally suited for MoCA band applications. It offers excellent MoCA band performance, amplitude, and phase balance, and can be used in both 50 Ohm and 75 Ohm systems.
This balun operates from 5 MHz to 3 GHz, with a maximum insertion loss of 6.0 dB. It features a 1:1 impedance ratio and is compatible with 260°C reflow processes. The component is RoHS3 compliant and Pb-free.
Key electrical specifications include input return loss up to 15 dB and amplitude unbalance as low as 0.05 dB across its operating frequency range. Phase unbalance is also tightly controlled, ranging from 0.1 to 6.5 degrees.
The device is available in a 6-SMD (5 Leads), Flat Lead package, suitable for surface mounting. It is also available on tape and reel.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The balun operates from 5 MHz to 3 GHz.
The maximum insertion loss is 6.0 dB in the 2150 - 3000 MHz range.
The impedance ratio is 1:1.
It is designed for surface mounting.
The operating temperature range is -40°C to +105°C.
Yes, it is RoHS3 Compliant.
