| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,593 pcs
|
2593 pcs | On Request | 1 | On Request | On Request | 1744+1822 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Frequency Range | |
| Impedance | |
| Insertion Loss (Max) | |
| Mounting Type | |
| Operating Temperature | |
| Phase Difference | |
| Storage Temperature | |
| Tape & Reel |

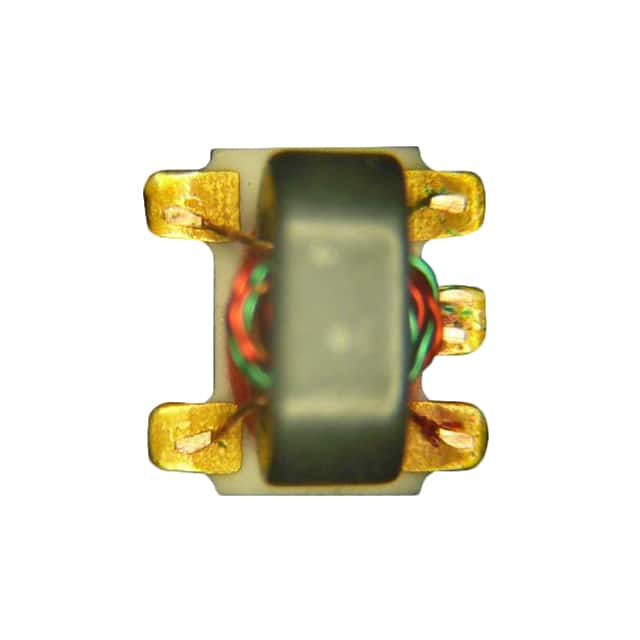

The MACOM MABA-007237-ETC410 is an E-Series RF 1:4 Coupled Step-Up Transformer designed for surface mounting. This balun operates across a wide frequency range from 1 MHz to 350 MHz, making it suitable for various RF applications.
Key electrical specifications include a maximum insertion loss of 1.2 dB and a phase unbalance of up to 5 degrees across the operating frequency range. The impedance ratio is 1:4, with a center tap (CT) on the secondary winding. The device is rated for a maximum DC power of 250 mW and a maximum DC current of 30 mA.
This component is housed in a 6-SMD (5 Leads), Flat Lead package, designed for efficient surface mounting. It is RoHS 3 compliant and lead-free, with a moisture sensitivity level of 1 (unlimited). The transformer is available on tape and reel with a quantity of 2000 pieces per reel.
Recommended for applications requiring impedance transformation in the RF spectrum, this balun offers reliable performance within its specified operating temperature range of -40°C to +85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating frequency range is 1 MHz to 350 MHz.
The impedance ratio is 1:4.
The maximum insertion loss is 1.2 dB.
The operating temperature range is -40°C to +85°C.
It is supplied in a 6-SMD (5 Leads), Flat Lead package.
Yes, it is RoHS 3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
