| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,994 pcs
|
2994 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,505 pcs
|
2505 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| For Measuring | |
| Mounting Type | |
| Operating Temperature | |
| Output | |
| Output Signal | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Termination Style | |
| Voltage |
The MA732GQ-Z is a digital, contactless angle position sensor from Monolithic Power Systems, designed for precise angle measurement. It employs Hall Effect technology and provides a digital SPI output signal. This sensor operates within a voltage range of 3V to 3.6V and is suitable for applications requiring accurate angular position data.
The device is designed for surface mounting, featuring a 16-VFQFN exposed pad package. It requires an external magnet, which is not included, to detect the angle. The operating temperature range is from -40°C to 125°C, making it robust for various environmental conditions. The output signal is programmable, offering flexibility in system integration.
Key specifications include a 14-bit resolution for angle measurement and a programmable output. The sensor is RoHS3 compliant and has an MSL 1 rating. Its compact package and surface mount termination style make it ideal for integration into space-constrained electronic designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 125°C.

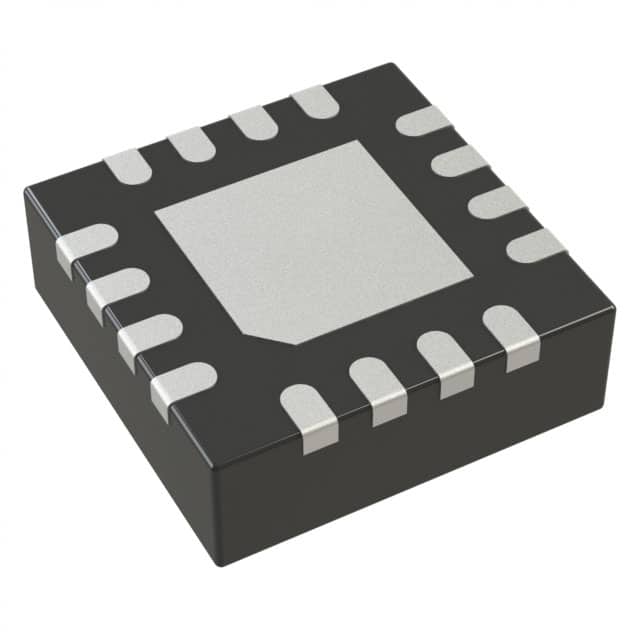

The MA732GQ-Z is available in a 16-VFQFN Exposed Pad package.
The operating voltage is between 3V and 3.6V.
The MA732GQ-Z uses Hall Effect technology and requires an external magnet to measure the angle.
The MA732GQ-Z provides a programmable SPI output signal.
