MA4SW210 The MA4SW210 is a broadband SPDT Silicon PIN Diode Switch from MACOM Technology Solutions. It operates from 50 MHz to 20 GHz with low insertion loss and high isolation.
Mfr Part #:

MA4SW210

Available from 2 distributors
Mfr Name: MACOM Technology Solutions
MACOM Technology Solutions
The MA4SW210 is a broadband SPDT Silicon PIN Diode Switch from MACOM Technology Solutions. It operates from 50 MHz to 20 GHz with low insertion loss and high isolation.
✓ Total Stock: 2,802 pcs
$ Price Range: $0.75

MA4SW210 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
2,500 pcs
On Request
2500 pcs On Request 1 On Request On Request 20+ On Request On Request
Partservice ✓
Non-Authorised Inventory information
302 pcs
On Request
302 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MA4SW210 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Circuit
Frequency Range
Insertion Loss
Isolation
Operating Temperature
RF Type
Storage Temperature
Supplier Device Package
Tape & Reel
Test Frequency
Topology
Voltage Rating
View Similar Products (0)

MA4SW210 Description

Short technical summary and product information.

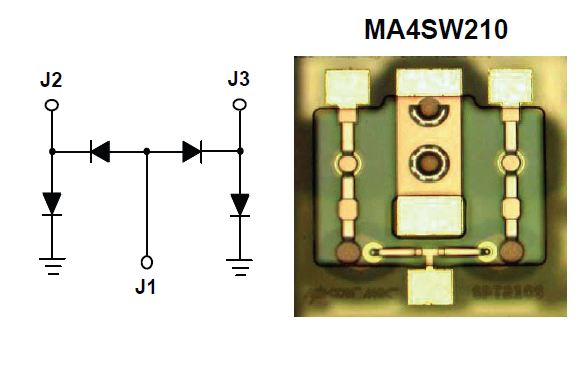

The MA4SW210 is a series-shunt, broadband, PIN diode switch manufactured by MACOM Technology Solutions using their HMIC™ process. This monolithic, glass-encapsulated chip is designed for moderate power, high-performance switching applications.



It offers a broad bandwidth, specified from 50 MHz to 20 GHz and usable up to 26.5 GHz. Key electrical specifications include low insertion loss (e.g., 0.4 dB at 6 GHz, 0.7 dB at 20 GHz) and high isolation (e.g., 48 dB at 6 GHz, 34 dB at 20 GHz). The switch can handle up to 33 dBm CW power at +25°C and features a switching speed of 50 ns.



The HMIC™ process embeds silicon pedestals into low-loss glass, resulting in excellent performance. The chip is protected by a polymer coating for handling, and gold bond pads facilitate connections. The backside metallization allows for attachment via solder or conductive epoxy.



Applications for the MA4SW210 include Aerospace & Defense and ISM systems. It provides superior performance compared to discrete component designs.

MA4SW210 Quick Information

Product Type: RF Switch
Series: HMIC™
Canonical Name: MA4SW210 SPDT Silicon PIN Diode Switch
Subcategory: PIN Diode Switch

MA4SW210 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MA4SW210 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

MA4SW210 Features

  • Broadband operation from 50 MHz to 20 GHz.
  • Usable up to 26.5 GHz frequency range.
  • Handles up to 33 dBm CW power.
  • Low insertion loss and high isolation.
  • Monolithic, glass-encapsulated chip design.

MA4SW210 Applications

  • Suitable for RF switching in communication systems.
  • Used in aerospace and defense RF applications.
  • Ideal for broadband RF signal routing.
  • Applicable in test and measurement equipment.
  • Employed in high-frequency signal switching modules.
