| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
24,107 pcs
|
24107 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Capacitance | |
| Capacitance @ Vr, F | |
| Current | |
| Diode Type | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Resistance @ If, F | |
| Storage Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Voltage |
The MACOM Technology Solutions MA4P7447-287T is a single PIN diode with a plastic construction, suitable for RF switching and attenuation applications. It operates with a reverse breakdown voltage of 100V and can handle an average rectified current of 150mA.
This diode has a maximum power dissipation of 250mW and a typical junction operating temperature of up to 175°C. Electrical characteristics include a typical resistance of 600mOhm at 10mA and 100MHz, and a capacitance of 1.2pF at 20V and 1MHz.

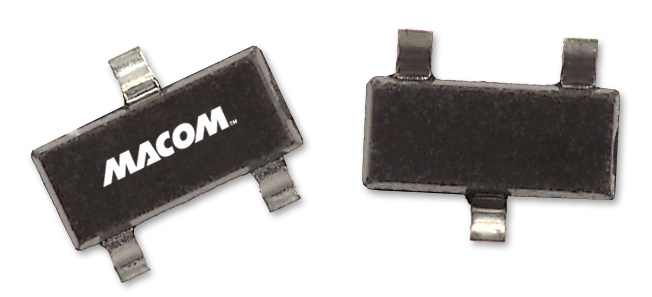

The component is supplied in a SOT-23 package, also referred to as TO-236-3 or SC-59. It is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The reverse breakdown voltage is 100V.
The average rectified current is 150mA.
The maximum power dissipation is 250mW.
The junction operating temperature is up to 175°C.
The component is supplied in a SOT-23 package.
