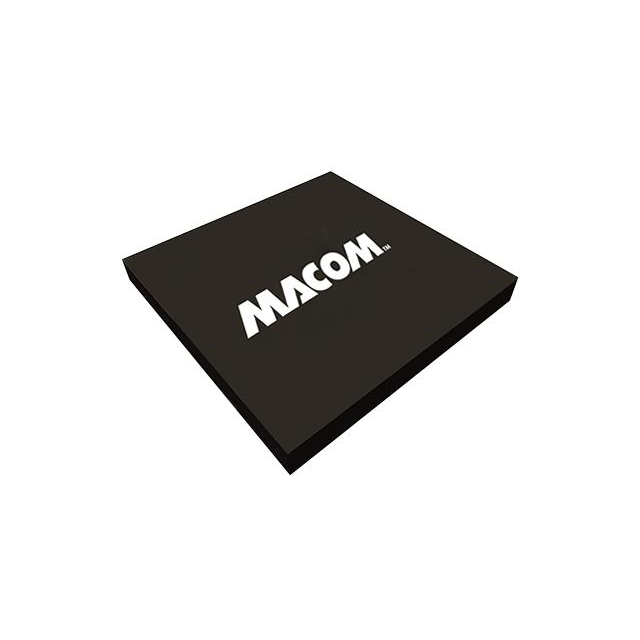

MA4L401-1056 MA4L401-1056 is a PIN single diode by MACOM Technology Solutions. It features a 300V voltage rating, 100mA current, 0.22pF capacitance, and 1.2 Ohm resistance.
Mfr Part #:

MA4L401-1056

Available from 1 distributors
Mfr Name: MACOM Technology Solutions
MACOM Technology Solutions
MA4L401-1056 is a PIN single diode by MACOM Technology Solutions. It features a 300V voltage rating, 100mA current, 0.22pF capacitance, and 1.2 Ohm resistance.
✓ Total Stock: 8 pcs
$ Price Range: $45.75

MA4L401-1056 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
8 pcs
On Request
8 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MA4L401-1056 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Capacitance @ Vr, F
Current
Diode Type
Lead Style
Operating Temperature
Power Dissipation (Max)
Resistance @ If, F
Supplier Device Package
Voltage
View Similar Products (0)

MA4L401-1056 Description

Short technical summary and product information.

The MA4L401-1056 is a PIN single diode from MACOM Technology Solutions designed for RF applications. This diode features a 300V reverse voltage rating and a forward current rating of 100 mA, making it suitable for high-voltage switching and attenuation.



Key electrical specifications include a low capacitance of 0.22 pF at 10V and 1 MHz, and a series resistance of 1.2 Ohm at 10 mA and 500 MHz. The maximum power dissipation is 10 W, and the junction temperature can reach up to 175°C.



The diode is housed in a compact 2-SMD, No Lead package with the supplier device package ODS-1056, enabling surface-mount assembly for space-constrained designs.

MA4L401-1056 Quick Information

Product Type: RF PIN Diode
Series: MA4L
Canonical Name: MA4L401-1056 PIN Single Diode
Subcategory: PIN Diodes

MA4L401-1056 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MA4L401-1056 Estimated Pricing

Qty Low High
250+ $45.75 $45.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

MA4L401-1056 Features

  • PIN single diode for RF switching.
  • 300V reverse voltage rating.
  • 100mA forward current rating.
  • Low capacitance of 0.22pF.
  • Operates up to 175°C junction.

MA4L401-1056 Applications

  • Ideal for RF switch circuits.
  • Used in RF attenuator designs.
  • Suitable for RF limiter applications.
  • Common in RF signal processing.

MA4L401-1056 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the voltage rating of the MA4L401-1056?

300V.

What is the current rating of the MA4L401-1056?

100 mA.

What is the package type of the MA4L401-1056?

2-SMD, No Lead (ODS-1056).

What is the capacitance of the MA4L401-1056?

0.22 pF at 10V, 1MHz.

What is the series resistance of the MA4L401-1056?

1.2 Ohm at 10mA, 500MHz.

What is the maximum power dissipation of the MA4L401-1056?

10 W.

What is the operating temperature range of the MA4L401-1056?

Up to 175°C (junction).
