| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,147 pcs
|
3147 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance @ Vr, F | |
| Diode Type | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Resistance @ If, F | |
| Technology | |
| Voltage |

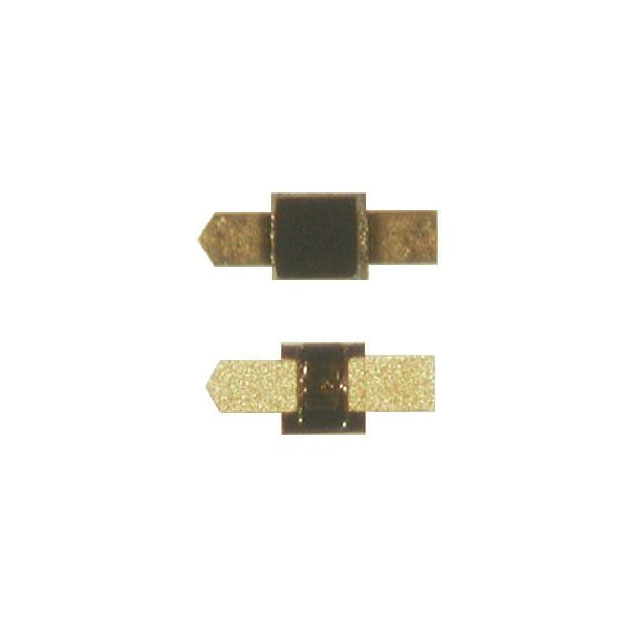

The MA4E2037 is a GaAs Schottky beam lead diode manufactured by MACOM Technology Solutions. It is designed for high-frequency RF applications requiring low capacitance and low series resistance.
Key electrical specifications include a reverse voltage rating of 7V, a capacitance of 0.06 pF at 0V and 1MHz, and a series resistance of 7 Ohms at 10mA and 1MHz. The device operates over a temperature range of -65°C to 125°C.
The diode is housed in a 2-SMD flat lead package with a beam lead style, suitable for surface mount assembly. The package is compact and designed for high-frequency performance.
| Qty | Low | High |
|---|---|---|
| 100+ | $21.22 | $21.22 |
| 200+ | $20.63 | $20.63 |
| 300+ | $20.33 | $20.33 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
7V.
2-SMD flat lead with beam lead style.
0.06 pF at 0V and 1MHz.
7 Ohms at 10mA and 1MHz.
-65°C to 125°C.
The part is listed as a PIN - Single diode type, but the technology is specified as Schottky. This conflict requires verification from the manufacturer datasheet.
