| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,405 pcs
|
1405 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance @ Vr, F | |
| Current | |
| Forward Current (Average) | |
| Junction Temperature | |
| Mounting Type | |
| Non-Repetitive Peak Forward Surge Current | |
| Operating Temperature | |
| Peak Forward Current | |
| Repetitive Peak Reverse Voltage | |
| Reverse Current | |
| Reverse Recovery Time (trr) | |
| Reverse Voltage | |
| Speed | |
| Storage Temperature Range | |
| Supplier Device Package | |
| Technology | |
| Voltage |

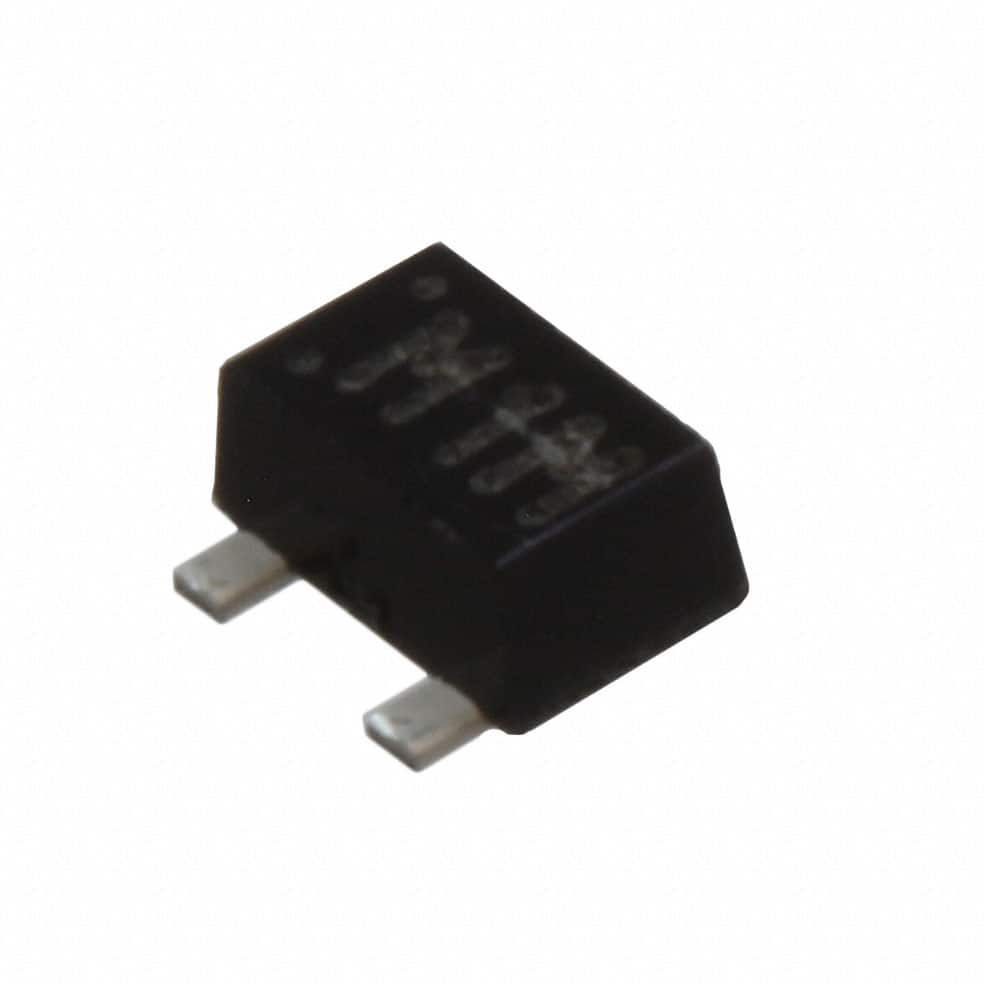

The MA3J74400L is a Schottky barrier diode designed for super high speed switching and small current rectification. It has a maximum reverse voltage of 30V and an average forward current of 200mA. The typical forward voltage is 550mV at 200mA, and the reverse recovery time is 3ns. This diode is suitable for applications requiring fast switching and low forward voltage drop. It is packaged in the SMini3-F1 surface mount package (SC-85), enabling high-density mounting. The operating junction temperature range is up to 150°C, and storage temperature range is -55°C to +150°C. The device is RoHS compliant.
The maximum reverse voltage is 30V.
The average forward current is 200mA, with a peak forward current of 300mA and non-repetitive surge current of 1A.
The typical forward voltage is 550mV at 200mA forward current.
The typical reverse recovery time is 3ns under test conditions (IF=IR=100mA, Irr=0.1IR, RL=100Ω).
It is available in a surface mount SMini3-F1 package (SC-85).
The maximum junction temperature is 150°C, and storage temperature range is -55°C to +150°C.
Yes, it is RoHS3 compliant as per the datasheet.
