| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Poles | |
| Response Time | |
| SVHC Present | |
| Voltage Rating |

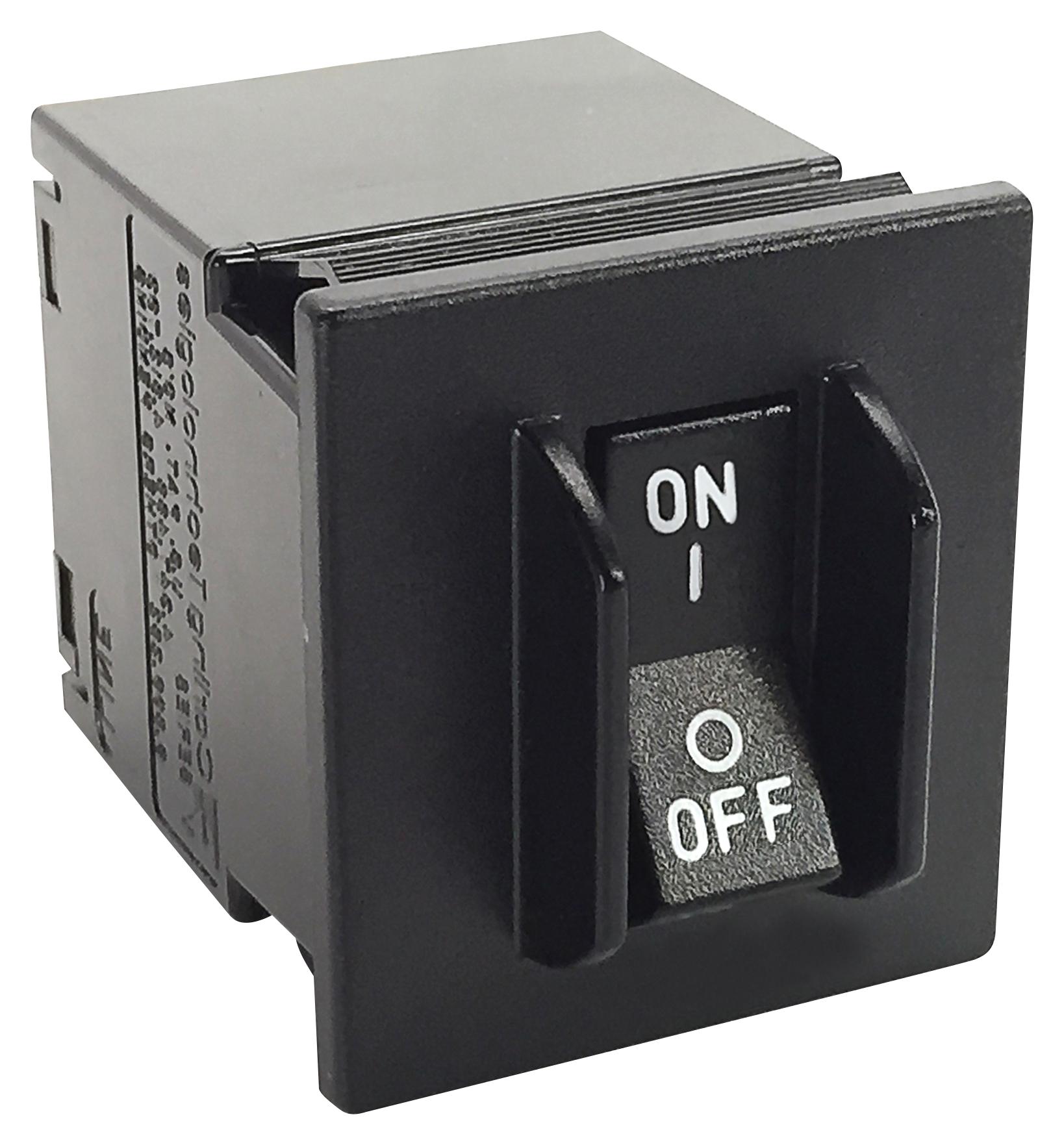

This Littelfuse Inc. MA2-B-34-610-1-A26-B-E is a magnetic hydraulic circuit breaker designed for reliable circuit protection. It operates with a 10A current rating and a voltage rating of 250V AC across its two poles.
The breaker type is magnetic with a hydraulic delay, offering specific trip characteristics. It is designed for panel mounting, making it suitable for integration into various electrical enclosures and systems. The actuator type is a rocker, providing a familiar interface for operation.
Key specifications include an interrupting capacity of 1kA and a response time of 70 seconds. The dielectric strength is rated at 1.5kV. Approval agencies include CCC, CSA, TUV, and UL, indicating compliance with various safety standards. The illumination is listed as none.
Environmental compliance includes RoHS3 compliance, MSL 1 Unlimited, and REACH unaffected status. The SVHC status is listed as 'To Be Advised'. This circuit breaker is part of the M Series product line.
The current rating is 10A.
The voltage rating is 250V AC.
It has 2 poles.
It is a magnetic breaker with a hydraulic delay.
The mounting type is panel mount.
The interrupting capacity is 1kA.
The response time is 70 seconds.
