Mfr Part #:

MA1508.AK.001

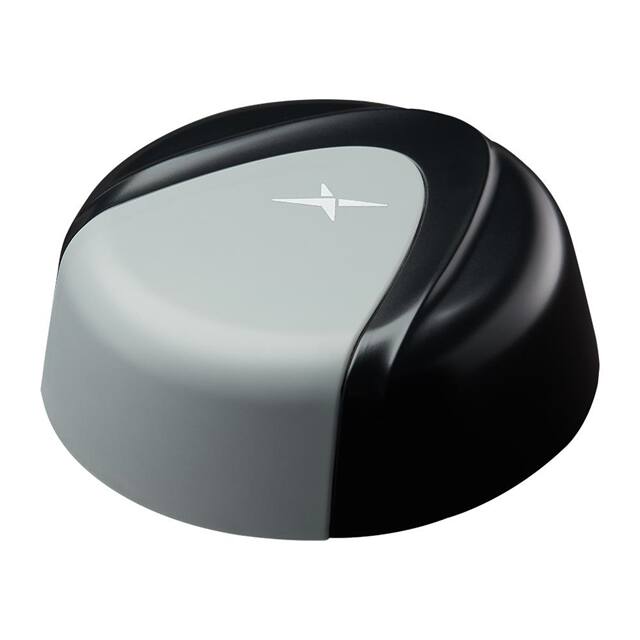

Name: MA1508.AK.001
Brand: Taoglas Limited
SKU: MA1508.AK.001

Mfr Name: Taoglas Limited

Description:

SYNERGY 8-IN-1 GNSS SMA(M):4*5G/

Stock on Request

MA1508.AK.001 Description

Short technical summary and product information.

SYNERGY 8-IN-1 GNSS SMA(M):4*5G/

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	RF Antennas
Manufacturer Name	Taoglas Limited
Antenna Type	Dome
Applications	4G/5G, Beidou, Galileo, GLONASS, GPS, GNSS, Wi-Fi
Features	Cable - 300mm, LNA, Filter
Frequency (Center	657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.495GHz, 2.45GHz, 3.55GHz, 5.5GHz, 5.5375GHz
Frequency Group	Wide Band
Frequency Range	617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.88GHz, 1.92GHz ~ 1.99GHz, 2.3GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 3.3GHz ~ 3.8GHz, 5.15GHz ~ 5.85GHz, 5.15GHz ~ 5.925GHz
Gain	0.25dBi, 1.44dBi, 2.93dBi, 3.76dBi, 3.75dBic, 4.44dBic, 4.54dBic, 4.55dBi, 2.93dBi, 3.97dBi, 5.06dBi, 3.12dBi, 5.99dBi, 7.03dBi, 6.28dBi
Height (Max)	2.263" (57.47mm)
Ingress Protection	IP67
Mounting Type	Panel Mount
Number of Bands	15
Power	2 W
RF Family	Cellular, Navigation, WiFi
Termination	RP-SMA Male, SMA Male
VSWR	2, 2.5
