Mfr Part #:

MA145.A.LBC.001

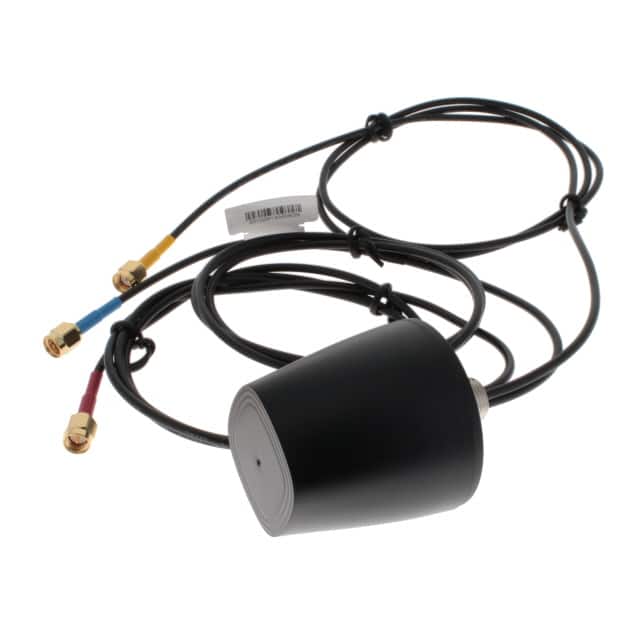

Name: MA145.A.LBC.001
Brand: Taoglas Limited
SKU: MA145.A.LBC.001

Mfr Name: Taoglas Limited

Description:

3IN1 GNSS, LTE & WIFI ANT 2.4GHZ

Stock on Request

MA145.A.LBC.001 Description

Short technical summary and product information.

3IN1 GNSS, LTE & WIFI ANT 2.4GHZ

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	RF Antennas
Manufacturer Name	Taoglas Limited
Antenna Type	Dome
Applications	3G, 4G, 5G, Beidou, Galileo, GLONASS, GNSS, GPS, HSPA, HSPA+, LTE, WCDMA, Wi-Fi
Features	Cable - 1m, LNA, Filter
Frequency (Center	657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.575GHz, 1.602GHz, 1.955GHz, 2.45GHz, 2.495GHz, 3.75GHz, 5.5GHz
Frequency Group	Wide Band
Frequency Range	617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.4GHz ~ 2.5GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 5.15GHz ~ 5.85GHz
Gain	-0.2dBi, 1.3dBi, 0.4dBi, 3.6dBi, -1.98dBi, -1.67dBi, 3.8dBi, 3.5dBi, 2.7dBi, 3.1dBi, 3.6dBi
Height (Max)	1.909" (48.50mm)
Ingress Protection	IP67
Mounting Type	Panel Mount
Number of Bands	11
Power	10 W
RF Family	Cellular, Navigation, WiFi
Termination	RP-SMA Male, SMA Male
VSWR	2
