| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Termination | |
| Voltage Rating |

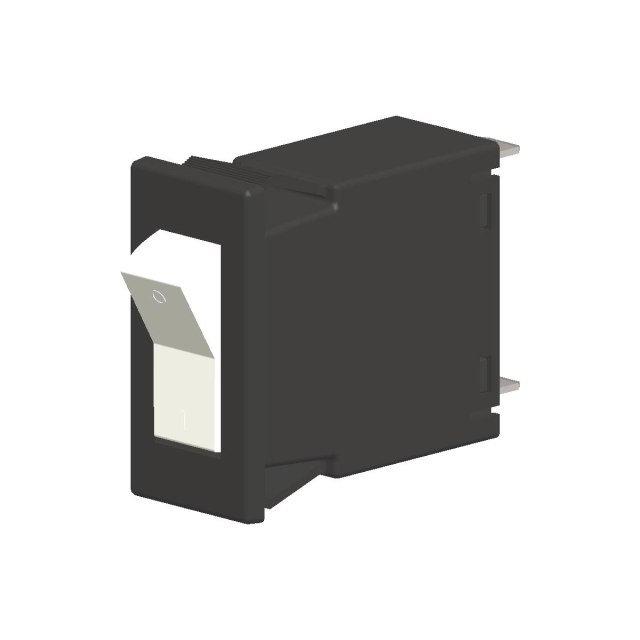

This Littelfuse Inc. MA1-B-24-430-1-A14-B-D is a hydraulic-magnetic circuit breaker designed for demanding OEM environments. It operates with a 3A current rating and a 250V voltage rating.
The breaker is a single-pole unit with a rocker actuator and non-illuminated design. It features a medium trip time delay suitable for 50/60Hz applications. The termination style is a 0.250 inch push-on tab (quick connect).
Mounting is achieved via a panel mount configuration. Agency approvals include CCC, CSA, UL, and VDE, indicating compliance with various safety standards. The M-Series circuit breaker is built for rugged and reliable performance.
The current rating is 3A.
The voltage rating is 250V.
It has 1 pole.
It uses a rocker actuator.
No, it is non-illuminated.
It is a Magnetic (Hydraulic Delay) circuit breaker.
The mounting type is Panel Mount.
