| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
52 pcs
|
52 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| ESR (Equivalent Series Resistance) | |
| Frequency | |
| Frequency Stability | |
| Frequency Tolerance | |
| Height | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Load Capacitance | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| Type | |
| Width |

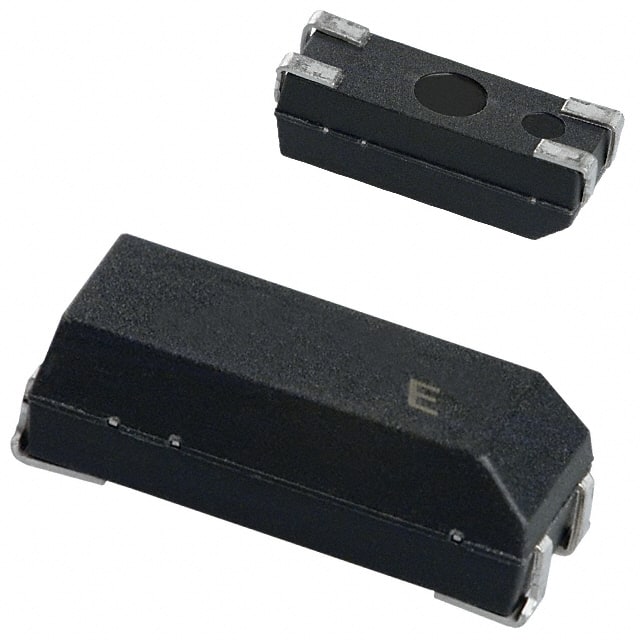

The Epson MA-505 18.4320M-C0 is a MHz crystal unit designed for precision timing applications. It operates at a fundamental frequency of 18.432 MHz with a load capacitance of 18 pF. This crystal offers a frequency stability of ±30 ppm and a frequency tolerance of ±50 ppm, ensuring reliable performance in a variety of electronic circuits. The crystal features a low equivalent series resistance (ESR) of 40 Ω, making it suitable for low-power oscillator designs. It is housed in a compact 4-SOJ package with a 3.30 mm pitch, measuring 12.70 mm x 5.08 mm x 4.60 mm. The surface mount design enables automated assembly, and the J-Lead style provides secure soldering. This crystal supports an operating temperature range of -20°C to 70°C, making it suitable for consumer and industrial applications. It is commonly used in microcontrollers, communication modules, and other timing-related circuits.
| Qty | Low | High |
|---|---|---|
| 1,000+ | $0.48 | $0.48 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The package is a 4-SOJ with 3.30 mm pitch, surface mount.
-20°C to 70°C.
According to available data, the part is RoHS3 compliant, though this is not verified.
18.432 MHz.
18 pF.
40 Ω.
Surface mount (SMD).
