Mfr Part #:

M83513/25-C02NP

Name: M83513/25-C02NP
Brand: ITT Cannon
SKU: M83513/25-C02NP

Mfr Name: ITT Cannon

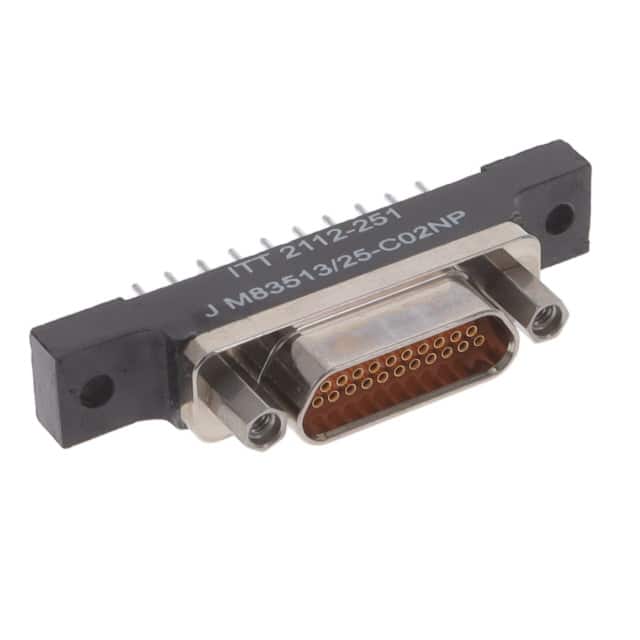

MICRO-D RECEPTACLE 21POS PCB, EL

Stock on Request

M83513/25-C02NP Description

Short technical summary and product information.

MICRO-D RECEPTACLE 21POS PCB, EL

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	D-Sub Connector Assemblies
Manufacturer Name	ITT Cannon
Connector Style	D-Type, Micro-D
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	50.0碌in (1.27碌m)
Contact Type	Signal
Current Rating (Amps)	3A
Flange Feature	Mating Side, Female Screwlock (2-56)
Mounting Type	Panel Mount, Through Hole
Number of Positions	21
Number of Rows	2
Shell Material, Finish	Aluminum, Nickel Plated, Electroless
Shell Size, Connector Layout	0.050 Pitch x 0.043 Row to Row
Termination	Solder
