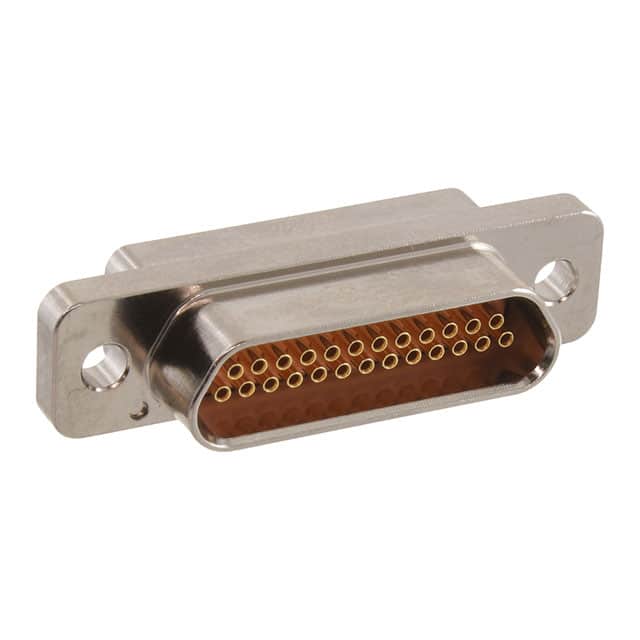

The ITT Cannon M83513/02-DN is a high-performance D-Sub connector assembly designed for reliable signal connections. This Micro-D receptacle features 25 positions arranged in two rows with a 0.050 inch pitch.
Constructed with an aluminum shell finished in electroless nickel, it offers durability and protection. The contacts are gold-plated copper alloy, providing excellent conductivity and resistance to corrosion, with a contact resistance of 8 milliohms maximum. The insulator material is LCP.
This connector is rated for a maximum current of 3A and a dielectric withstanding voltage of 600 VAC at sea level. It is designed for free-hanging (in-line) mounting and utilizes solder cup termination for secure connections. The series is M83513-1-4, and the product line is Micros.
Environmental specifications include thermal shock resistance from -55°C to +125°C, physical shock resistance of 50 G's, and vibration resistance of 20 G's. It has a durability rating of 500 cycles of mating and unmating and meets moisture resistance requirements with insulator resistance greater than 100 megohms.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 3 A max.
The connector has 25 positions.
It supports Free Hanging (In-Line) mounting.
The contact finish is Gold.
The termination style is Solder Cup.
The pitch is 0.050 inch.
