| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11 pcs
|
11 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

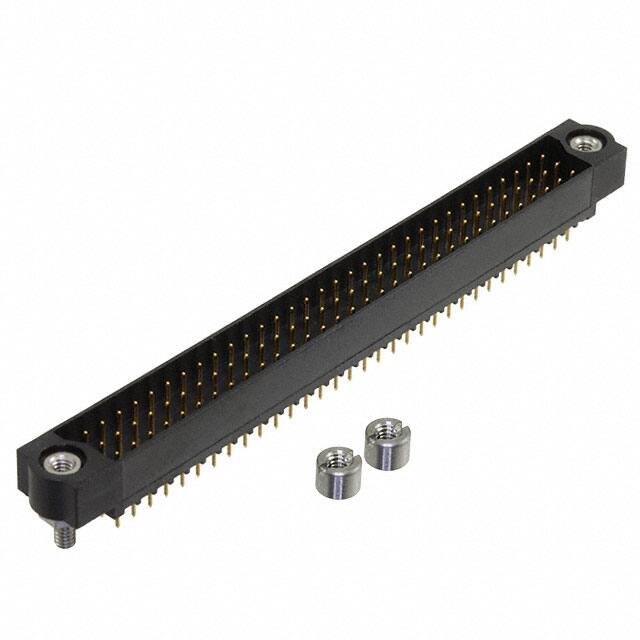

The Harwin M83-LMT1M2N96-0000-000 is a 96-position male header from the Datamate J-Tek series, designed for high-reliability board-to-board and cable connections. It features a 2.00mm pitch with 3 rows of contacts, providing a compact solution for dense electronic assemblies.
The connector is fully shrouded with 4-wall protection and features threaded jackscrew fastening for secure mating. The contacts are made of phosphor bronze with gold plating (0.75µm), ensuring excellent conductivity and corrosion resistance. The housing is black polyphenylene sulfide (PPS), glass filled, with a UL94 V-0 flammability rating.
Electrical ratings include a maximum current of 3A per contact at 25°C ambient (2.2A at 85°C) and a voltage rating of 120V. The operating temperature range spans from -55°C to 125°C, suitable for harsh environments.
Termination is through-hole with straight leads, including a 3.5mm board mount stud for additional mechanical stability. This connector is ideal for applications requiring high pin count and reliable interconnection in industrial, aerospace, and telecommunications equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $39.84 | $39.84 |
| 12+ | $33.43 | $33.43 |
| 36+ | $30.93 | $30.93 |
| 60+ | $29.84 | $29.84 |
| 108+ | $28.63 | $28.63 |
| 252+ | $26.97 | $26.97 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
96 positions arranged in 3 rows (32 per row).
2.00mm (0.079 inches).
3A per contact at 25°C ambient, de-rated to 2.2A per contact at 85°C ambient (all contacts loaded).
120V maximum.
Through hole with straight leads and a 3.5mm board mount stud.
-55°C to 125°C.
Threaded jackscrews (threaded fastening).
