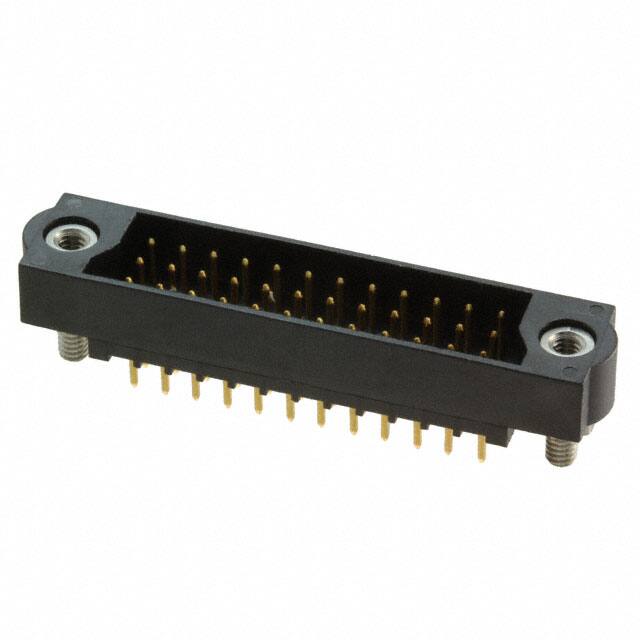

The Harwin M83-LMT1M2N36-0000-000 is a 36-position male pin header from the Datamate J-Tek series. It features a 2.00mm pitch with 3 rows (12 positions per row), making it suitable for high-density interconnections. The connector is fully shrouded with a 4-wall design and includes internally threaded jackscrews for secure mating, along with 3.5mm board mount studs for additional stability. Contact material is phosphor bronze with a gold finish (29.5µin thickness). The insulator is black glass-filled PPS, rated UL94 V-0. Electrical ratings: 3.0A per contact at 25°C (all contacts loaded), derated to 2.2A at 85°C; single contact rating 3.3A at 25°C, 2.6A at 85°C. Voltage rating is 120V. Operating temperature range is -55°C to 125°C. It is designed for board-to-board or cable applications with through-hole mounting and solder termination. The connector includes mating and mounting flanges with hardware, supporting reliable connections in demanding environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $22.67 | $22.67 |
| 24+ | $18.12 | $18.12 |
| 48+ | $17.25 | $17.25 |
| 72+ | $16.77 | $16.77 |
| 120+ | $16.17 | $16.17 |
| 264+ | $15.30 | $15.30 |
| 504+ | $14.62 | $14.62 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
36 positions arranged in 3 rows (12 per row).
2.00mm (0.079 inches).
3.0A per contact at 25°C ambient with all contacts loaded; derated to 2.2A at 85°C. Single contact rating is 3.3A at 25°C and 2.6A at 85°C.
120V.
Through-hole with solder termination.
-55°C to 125°C.
Gold plating with 29.5µin (0.75µm) thickness over phosphor bronze.
