M83-LFD1F2N60-0000-000 60 position female receptacle connector from Harwin's Datamate J-Tek series. Features 2.00mm pitch, crimp termination, and gold contacts for 22 AWG wire.
Mfr Part #:

M83-LFD1F2N60-0000-000

Available from 1 distributors
Mfr Name: Harwin Inc.
Harwin Inc.
60 position female receptacle connector from Harwin's Datamate J-Tek series. Features 2.00mm pitch, crimp termination, and gold contacts for 22 AWG wire.
✓ Total Stock: 15 pcs
$ Price Range: $39.18 - $57.87

M83-LFD1F2N60-0000-000 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
15 pcs
On Request
15 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

M83-LFD1F2N60-0000-000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Cable Termination
Color
Connector Type
Contact Finish
Contact Finish Thickness
Contact Type
Features
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Rows
Pitch
Row Spacing
Termination Style
Wire Gauge
Wire Type
View Similar Products (0)

M83-LFD1F2N60-0000-000 Description

Short technical summary and product information.

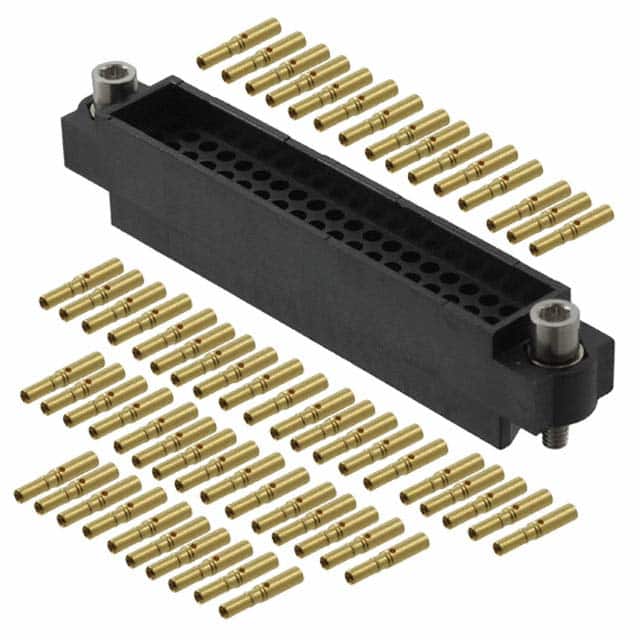

The Harwin M83-LFD1F2N60-0000-000 is a 60 position female receptacle connector from the Datamate J-Tek series. Designed for free hanging (in-line) mounting, this connector features a 3-row configuration with a 2.00mm pitch and row spacing. It is supplied as a complete kit including the housing and 60 straight signal contacts (20 x 3-row) with gold plating. The contacts are female sockets designed for 22 AWG discrete wire, using crimp termination. The connector is fitted with hex socket jackscrews for secure mating and extraction. Electrical ratings: 3.3A per contact at 25°C (maximum) and 3.0A when all contacts are loaded at 25°C. The connector is black in color and is RoHS3 and REACH compliant (unverified). The Datamate range is intended for high-reliability applications in high packing density electronic equipment.

M83-LFD1F2N60-0000-000 Quick Information

Product Type: Rectangular Connector
Series: J-Tek
Canonical Name: Harwin Datamate J-Tek M83-LFD1F2N60-0000-000 60 Position Female Receptacle Connector, 2.00mm Pitch, Crimp, Gold
Subcategory: Cable Connector Kit

M83-LFD1F2N60-0000-000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

M83-LFD1F2N60-0000-000 Estimated Pricing

Qty Low High
1+ $57.87 $57.87
12+ $48.56 $48.56
36+ $44.94 $44.94
60+ $43.35 $43.35
108+ $41.59 $41.59
252+ $39.18 $39.18

Estimated market price range - modelled values for guidance only, not live distributor offers.

M83-LFD1F2N60-0000-000 Features

  • 60 positions in 3 rows on 2.00mm pitch.
  • Female socket contacts with gold plating.
  • Crimp termination for 22 AWG discrete wire.
  • Free hanging (in-line) mounting style.
  • Features hex socket jackscrews for secure mating.

M83-LFD1F2N60-0000-000 Applications

  • Used in high-density cable-to-cable connections.
  • Suitable for industrial control systems.
  • Ideal for data communication equipment.
  • Applicable in aerospace and defense electronics.
  • Used in test and measurement instrumentation.

M83-LFD1F2N60-0000-000 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this connector have?

60 positions arranged in 3 rows (20 x 3-row).

What is the pitch of this connector?

2.00mm (0.079") pitch with 2.00mm row spacing.

What is the current rating of the M83-LFD1F2N60-0000-000?

3.3A maximum per contact at 25°C, 2.6A at 85°C. When all contacts are loaded, 3.0A at 25°C and 2.2A at 85°C.

What mounting type is this connector?

Free hanging (in-line) mounting.

What wire gauge is supported?

22 AWG discrete wire.

What termination method does this connector use?

Crimp termination for female socket contacts.

What is the contact finish?

Gold plating with 0.30µm (11.8µin) thickness.
