M83-LFC1F1N96-0000-000 Harwin Datamate J-Tek 3-Row 96-position female receptacle connector with crimp termination for 24-28 AWG wire. Features 2.00mm pitch, gold-plated contacts, and slotted jackscrews.
Mfr Part #:

M83-LFC1F1N96-0000-000

Available from 1 distributors
Mfr Name: Harwin Inc.
Harwin Inc.
Harwin Datamate J-Tek 3-Row 96-position female receptacle connector with crimp termination for 24-28 AWG wire. Features 2.00mm pitch, gold-plated contacts, and slotted jackscrews.
✓ Total Stock: 1 pcs
$ Price Range: $48.32 - $67.23

M83-LFC1F1N96-0000-000 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

M83-LFC1F1N96-0000-000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Cable Termination
Color
Connector Type
Contact Finish
Contact Finish Thickness
Contact Type
Features
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Rows
Pitch
Row Spacing
Termination Style
Wire Gauge
Wire Type
View Similar Products (0)

M83-LFC1F1N96-0000-000 Description

Short technical summary and product information.

The Harwin M83-LFC1F1N96-0000-000 is a 96-position female receptacle connector from the Datamate J-Tek series, designed for high-reliability applications. This 3-row connector features a 2.00mm pitch and 2.00mm row spacing, with a free hanging (in-line) mounting style and crimp termination for 24-28 AWG wire.

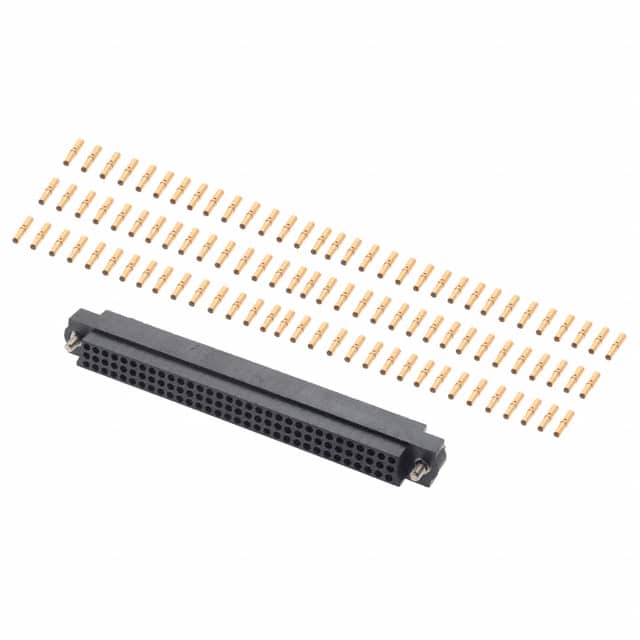

The connector is supplied as a complete kit including the triple-row straight cable housing and 96 straight signal contacts (32 x 3). Gold-plated female socket contacts with a 0.30µm gold finish ensure reliable signal integrity. The connector is fitted with floating slotted jackscrews for secure mating.



Electrical ratings for the Datamate series include a maximum current of 3.3A per contact at 25°C (single contact) and 3.0A with all contacts loaded. At 85°C ambient, the ratings are 2.6A per contact (single) and 2.2A (all contacts loaded). The black housing and gold contact finish make this connector suitable for demanding environments.

M83-LFC1F1N96-0000-000 Quick Information

Product Type: Rectangular Connector
Series: J-Tek
Canonical Name: Harwin Datamate J-Tek 3-Row 96-Position Female Receptacle Connector, Crimp Termination, 2.00mm Pitch
Subcategory: Free Hanging (In-Line)

M83-LFC1F1N96-0000-000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 - Unlimited
REACH Status: REACH Unaffected

M83-LFC1F1N96-0000-000 Estimated Pricing

Qty Low High
1+ $67.23 $67.23
12+ $56.41 $56.41
36+ $52.21 $52.21
60+ $50.36 $50.36
108+ $48.32 $48.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

M83-LFC1F1N96-0000-000 Features

  • 96-position 3-row female receptacle connector.
  • 2.00mm pitch with 2.00mm row spacing.
  • Crimp termination for 24-28 AWG wire.
  • Gold-plated contacts with 0.30µm gold finish.
  • Includes slotted jackscrews for secure mating.

M83-LFC1F1N96-0000-000 Applications

  • Suitable for high-density cable-to-cable connections.
  • Ideal for cable-to-board interconnects in electronic equipment.
  • Used in applications requiring reliable gold-plated contacts.
  • Designed for use with Datamate J-Tek series mating connectors.

M83-LFC1F1N96-0000-000 FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the M83-LFC1F1N96-0000-000 have?

This connector has 96 positions arranged in 3 rows (32 x 3).

What is the pitch of this connector?

The pitch is 2.00mm (0.079") with a row spacing of 2.00mm (0.079").

What is the current rating of the M83-LFC1F1N96-0000-000?

The maximum current rating is 3.3A per contact at 25°C (single contact) and 3.0A with all contacts loaded. At 85°C, the ratings are 2.6A per contact (single) and 2.2A (all contacts loaded).

What type of termination does this connector use?

This connector uses crimp termination and is designed for 24-28 AWG wire.

What is the mounting style of this connector?

The mounting style is free hanging (in-line).
