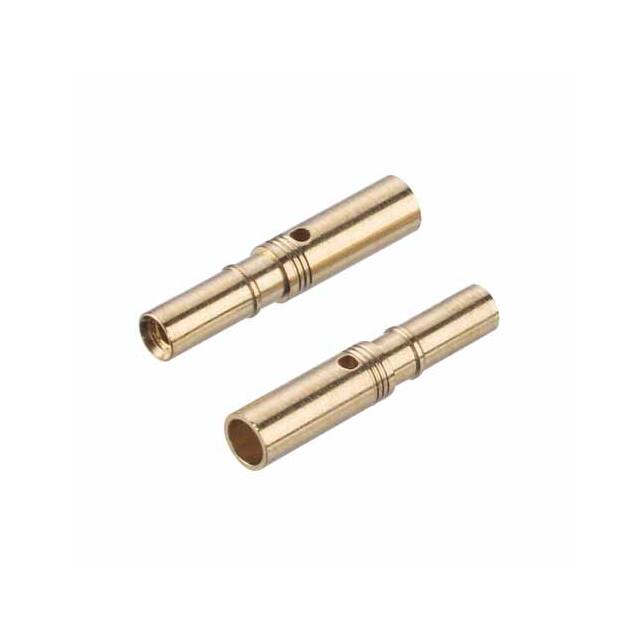

M83-0130005 Female crimp socket contact from Harwin's Datamate J-Tek series. Suitable for 24-28 AWG wire with gold plating and 3.3A current rating.
Mfr Part #:

M83-0130005

Available from 1 distributors
Mfr Name: Harwin Inc.
Harwin Inc.
Female crimp socket contact from Harwin's Datamate J-Tek series. Suitable for 24-28 AWG wire with gold plating and 3.3A current rating.
✓ Total Stock: 164 pcs
$ Price Range: $0.58 - $1.04

M83-0130005 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
164 pcs
On Request
164 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

M83-0130005 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Contact Finish
Contact Finish Thickness
Contact Termination
Lead Style
Pin or Socket
Termination Style
Type
Wire Gauge
View Similar Products (0)

M83-0130005 Description

Short technical summary and product information.

The M83-0130005 is a female receptacle crimp contact from Harwin's Datamate J-Tek 3-row connector series. It is designed for signal applications and accepts 24 to 28 AWG wire with a maximum insulation diameter of 1.1 mm. The contact features a straight orientation and gold plating with a thickness of 0.3 µm (11.8 µin). It is rated for 3.3 A at 25°C ambient (one contact per connector) and 2.6 A at 85°C. The contact is supplied loose for crimp termination. It is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited). This contact is used with Datamate J-Tek 3-row female receptacles (M83-LFD1 series).

M83-0130005 Quick Information

Product Type: Rectangular Connector Contact
Series: M83
Canonical Name: Harwin M83-0130005 Female Receptacle Crimp Contact, 24-28 AWG, Gold
Subcategory: Signal Crimp Contact

M83-0130005 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

M83-0130005 Estimated Pricing

Qty Low High
1+ $1.04 $1.04
10+ $0.88 $0.88
25+ $0.83 $0.83
50+ $0.79 $0.79
100+ $0.75 $0.75
250+ $0.70 $0.70
500+ $0.67 $0.67
2,000+ $0.61 $0.61
4,000+ $0.58 $0.58

Estimated market price range - modelled values for guidance only, not live distributor offers.

M83-0130005 Features

  • Female crimp socket contact for 24-28 AWG.
  • Gold plating with 0.3 µm thickness.
  • Rated for 3.3 A at 25°C ambient.
  • Straight contact orientation.
  • Loose packaging for crimp termination.

M83-0130005 Applications

  • Used in Datamate J-Tek 3-row connectors.
  • Suitable for signal interconnections.
  • Ideal for high-density cable assemblies.
  • Works with M83-LFD1 series receptacles.

M83-0130005 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of the M83-0130005 contact?

3.3 A at 25°C ambient (one contact per connector) and 2.6 A at 85°C.

What wire gauge does the M83-0130005 accept?

24-28 AWG.

What is the contact finish?

Gold with 0.3 µm thickness.

What is the termination style?

Crimp.

How is the contact packaged?

Loose.

Is the M83-0130005 RoHS compliant?

RoHS3 Compliant (unverified).

Which connector series does this contact belong to?

Datamate J-Tek 3-row (M83 series).
