| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
46 pcs
|
46 pcs | On Request | 1 | On Request | On Request | 1120 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Insulation Resistance | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage |

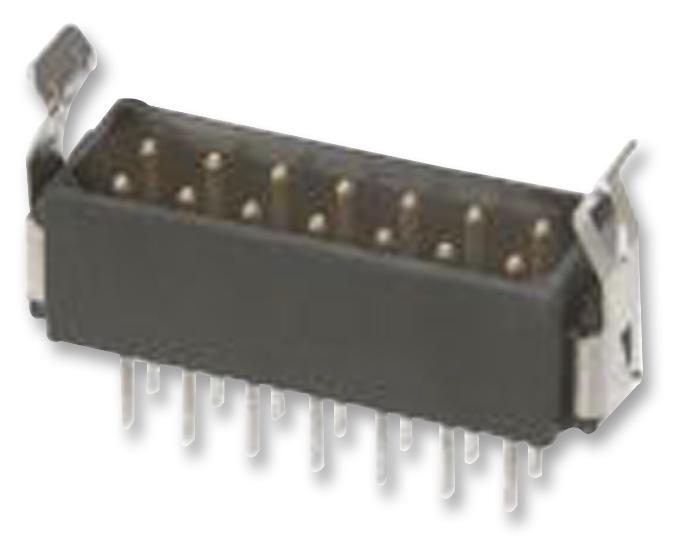

The HARWIN M808531442 is a vertical PC tail plug assembly data connector, featuring a durable glass-filled PPS mold in black. It is designed for demanding industrial electronics applications requiring reliable, high-current connections.
This connector boasts Phosphor Bronze contacts with gold and tin/lead finishes, ensuring good conductivity and durability. It is rated for 3.0A at 25°C and 2.2A at 85°C, with an operating voltage of 800V AC/DC and a proof voltage of 1200V AC/DC. The contact resistance is a low 20mΩ initially, and insulation resistance is a minimum of 1000MΩ.
Engineered for longevity, the M808531442 withstands 500 operations and operates within a wide temperature range of -55°C to +125°C. It includes strain relief straps for added robustness and is suitable for PCB mounting. The contact spacing is 2.00mm.
This connector is an excellent choice for industrial environments where dependable performance and high-current handling are critical. Its construction and specifications make it suitable for various demanding electronic applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage for the HARWIN M808531442 is 800V AC/DC.
The current rating is 3.0A at 25°C and 2.2A at 85°C.
The operating temperature range is -55°C to +125°C.
It is designed to withstand 500 operations.
The initial contact resistance is 20mΩ.
The minimum insulation resistance is 1000MΩ.
You can click on the BUY or RFQ button to purchase M808531442 from an authorized HARWIN distributor.
