| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
24 pcs
|
24 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination |

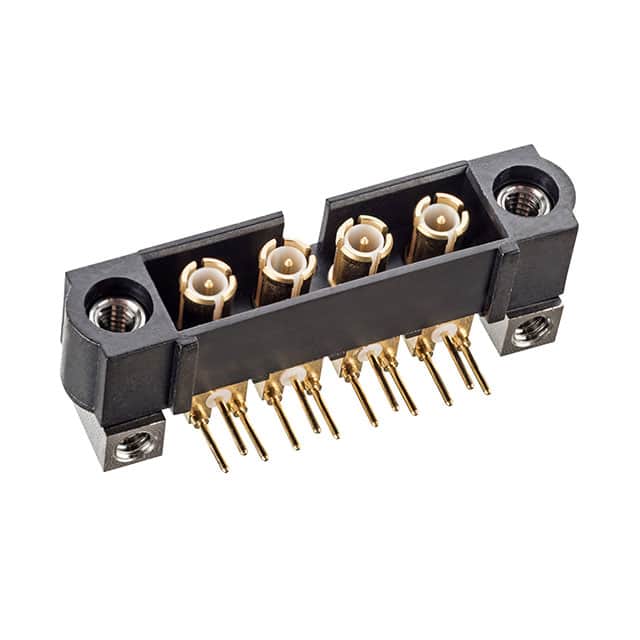

The Harwin M80-MH313M5-04 is a 4-position male plug header from the Datamate M80 series, designed for board-to-board or cable-to-board interconnections. It features a single row of 4 coaxial contacts arranged at a 4.00mm pitch, with a right-angle through-hole mounting style for 3mm PCB terminations.
The connector is fully shrouded with a 4-wall design and includes both mating and mounting flanges. Fastening is achieved via internally threaded jackscrews, providing secure mating. The insulation is made from glass-filled Polyphenylene Sulfide (PPS) in black, rated UL94 V-0 for flammability. Contacts are made of copper alloy with a gold finish, and the operating temperature range is -55°C to 125°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $78.70 | $78.70 |
| 10+ | $66.90 | $66.90 |
| 100+ | $56.87 | $56.87 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 4.00mm.
It has 4 positions, all loaded with coaxial contacts.
It is a through-hole, right-angle mount connector.
The operating temperature range is -55°C to 125°C.
It uses threaded jackscrews for fastening.
The contact finish is gold.
