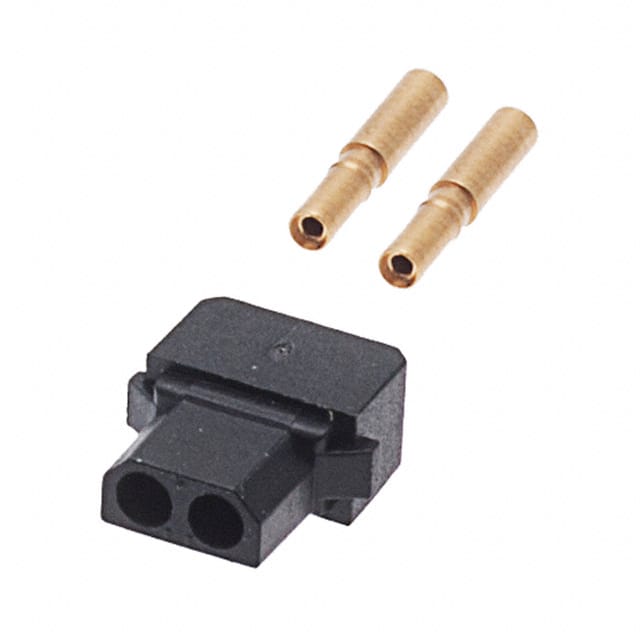

M80-8990205 Harwin M80-8990205 is a 2 position single row female receptacle crimp connector with 2.00mm pitch, gold plated contacts, and a locking ramp fastening type.
Mfr Part #:

M80-8990205

Available from 1 distributors
Mfr Name: Harwin Inc.
Harwin Inc.
Harwin M80-8990205 is a 2 position single row female receptacle crimp connector with 2.00mm pitch, gold plated contacts, and a locking ramp fastening type.
✓ Total Stock: 516 pcs
$ Price Range: $1.27 - $2.21

M80-8990205 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
516 pcs
On Request
516 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

M80-8990205 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Cable Termination
Color
Connector Type
Contact Finish
Contact Finish Thickness
Contact Type
Fastening Type
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Rows
Pitch
Tape & Reel
Termination Style
Wire Gauge
Wire Type
View Similar Products (0)

M80-8990205 Description

Short technical summary and product information.

The Harwin M80-8990205 is a 2 position female receptacle connector from the Datamate L-Tek series. It features a single row of 2 contacts with a 2.00mm pitch, designed for free hanging (in-line) mounting with crimp termination. The connector accepts 22 AWG discrete wires and includes a locking ramp for secure mating.



The contacts are gold plated with a thickness of 0.30µm (11.8µin), providing reliable electrical performance. The current rating is 3.3A per contact (single contact at 25°C) and 3.0A when all contacts are used at 25°C ambient. The housing is black and the connector is RoHS3 compliant and REACH unaffected.

M80-8990205 Quick Information

Product Type: Rectangular Connector
Series: M80
Canonical Name: Harwin M80-8990205 2 Position Single Row Female Receptacle Crimp Connector, 2.00mm Pitch, Gold Plating, 22 AWG
Subcategory: Free Hanging, Panel Mount

M80-8990205 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

M80-8990205 Estimated Pricing

Qty Low High
1+ $2.21 $2.21
10+ $1.88 $1.88
25+ $1.76 $1.76
50+ $1.68 $1.68
100+ $1.60 $1.60
250+ $1.50 $1.50
500+ $1.43 $1.43
1,000+ $1.36 $1.36
2,500+ $1.27 $1.27

Estimated market price range - modelled values for guidance only, not live distributor offers.

M80-8990205 Features

  • 2 position single row female receptacle.
  • 2.00mm pitch with crimp termination.
  • Gold plated contacts, 0.30µm thickness.
  • Rated 3.3A per contact at 25°C.
  • Locking ramp for secure mating.

M80-8990205 Applications

  • Suitable for cable-to-board interconnections.
  • Used in high-density electronic equipment.
  • Ideal for wire-to-wire discrete wiring applications.
  • Compatible with Datamate L-Tek male plug connectors.

M80-8990205 FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the M80-8990205 have?

The M80-8990205 has 2 positions in a single row.

What is the pitch of the M80-8990205 connector?

The pitch is 2.00mm (0.079 inches).

What is the current rating of the M80-8990205?

The current rating is 3.3A per contact (single contact at 25°C) and 3.0A when all contacts are used at 25°C ambient.

What wire gauge does the M80-8990205 accept?

The connector accepts 22 AWG wire.

What is the mounting type of the M80-8990205?

The mounting type is free hanging (in-line).
