| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Termination Style | |
| Wire Gauge | |
| Wire Type |

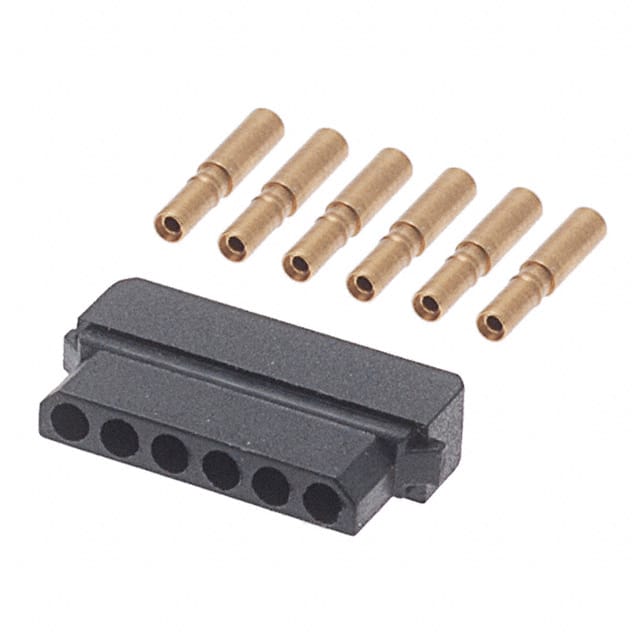

The Harwin M80-8980605 is a 6 position female crimp receptacle from the Datamate L-Tek series, featuring a 2.00mm pitch and single row configuration. It accepts 24-28 AWG discrete wires and terminates via crimp contacts with a gold finish of 0.30µm thickness. The connector uses a locking ramp fastening type for secure mating and is designed for free hanging (in-line) mounting.
This connector is rated for a maximum current of 3.3A per contact at 25°C ambient when one contact is electrically loaded, and 3.0A per contact when all contacts are loaded at 25°C. At 85°C ambient, the ratings are 2.6A and 2.2A per contact respectively. The housing is black and the contact type is female socket.
The M80-8980605 is part of the broader Datamate M80 series of 2mm pitch rectangular connectors, which are fully shrouded and unsealed, intended for high packing density electronic equipment. The connector is polarized to prevent mismatching and features a latching mechanism.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.47 | $5.47 |
| 10+ | $4.65 | $4.65 |
| 25+ | $4.36 | $4.36 |
| 50+ | $4.15 | $4.15 |
| 100+ | $3.95 | $3.95 |
| 250+ | $3.71 | $3.71 |
| 500+ | $3.53 | $3.53 |
| 1,000+ | $3.36 | $3.36 |
| 2,500+ | $3.15 | $3.15 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The M80-8980605 has 6 positions in a single row.
The pitch is 2.00mm (0.079 inches).
The maximum current rating is 3.3A per contact at 25°C when one contact is loaded, and 3.0A per contact when all contacts are loaded at 25°C. At 85°C, the ratings are 2.6A and 2.2A per contact respectively.
The M80-8980605 is designed for free hanging (in-line) mounting.
The connector accepts 24-28 AWG discrete wire.
The contacts have a gold finish with a thickness of 0.30µm (11.8µin).
