| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | 1848 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Tape & Reel | |
| Termination Style | |
| Wire Gauge | |
| Wire Type |

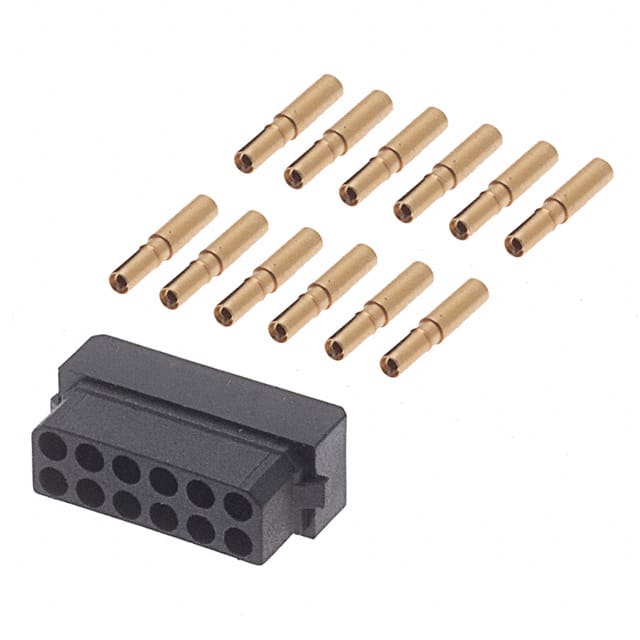

The Harwin M80-8891205 is a 12-position female receptacle connector from the Datamate L-Tek series, designed for free-hanging cable-to-board or cable-to-cable applications. It offers a 2.00mm pitch with two rows of 6 contacts, accommodating 22 AWG discrete wire via crimp termination. The connector features a locking ramp fastening mechanism and gold-plated contacts with a 0.30µm finish for reliable low-voltage connections.
Electrical ratings are specified per JEDEC conditions: 3.3A maximum per contact at 25°C ambient when a single contact is powered, derating to 2.6A at 85°C. When all contacts are powered, the maximum is 3.0A at 25°C and 2.2A at 85°C. The connector is rated for RoHS3 compliance (unverified) and has an MSL of 1 (unlimited).
Mechanical features include a black housing, free-hanging (in-line) mounting, and a row spacing of 2.00mm. The contact type is female socket, and the cable termination is crimp. This connector is part of the M80 series and is compatible with male plug connectors that use latches.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.74 | $8.74 |
| 10+ | $7.43 | $7.43 |
| 25+ | $6.96 | $6.96 |
| 50+ | $6.63 | $6.63 |
| 100+ | $6.31 | $6.31 |
| 250+ | $5.92 | $5.92 |
| 500+ | $5.64 | $5.64 |
| 1,000+ | $5.37 | $5.37 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
12 positions (6+6).
2.00mm.
3.3A maximum per contact at 25°C ambient (single contact), derated to 2.2A when all contacts are powered at 85°C.
Free hanging (in-line) with crimp termination.
0.30µm gold plating.
22 AWG discrete wire.
Locking ramp.
