| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
63 pcs
|
63 pcs | On Request | 1 | On Request | On Request | 261109 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Termination Style | |
| Wire Gauge | |
| Wire Type |

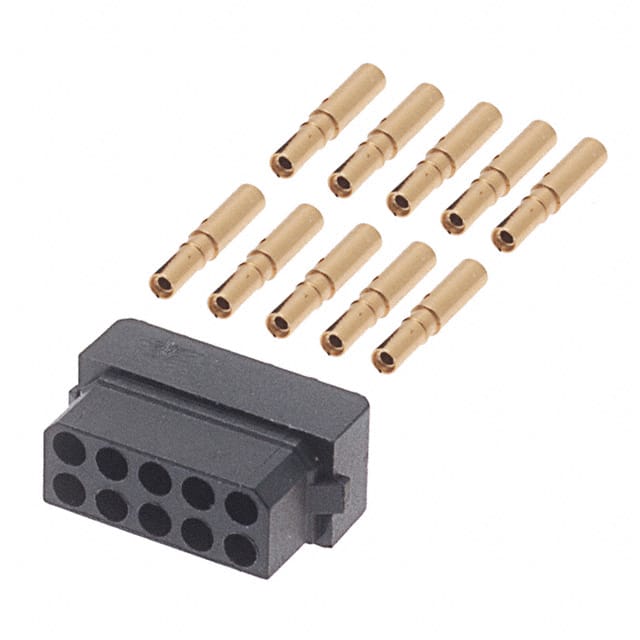

The Harwin M80-8891005 is a 10 position female receptacle connector from the Datamate L-Tek series. This connector is a complete kit that includes a double row straight cable housing and 10 straight signal contacts. It features a 2.00mm pitch and a row spacing of 2.00mm, with a locking ramp fastening type for secure mating with compatible male plug connectors.
The connector uses crimp termination for 22 AWG discrete wire and has gold plated female socket contacts with a thickness of 0.30µm. It is rated for a maximum current of 3.3A per contact at 25°C ambient, and 3.0A when all contacts are powered. The mounting type is free hanging (in-line), and the housing is black.
This connector is designed for high-reliability applications requiring a compact, 2mm pitch interconnect solution. It is suitable for cable-to-cable or cable-to-board connections where a latching mechanism is needed.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.46 | $7.46 |
| 10+ | $6.34 | $6.34 |
| 25+ | $5.94 | $5.94 |
| 50+ | $5.66 | $5.66 |
| 100+ | $5.39 | $5.39 |
| 250+ | $5.05 | $5.05 |
| 500+ | $4.81 | $4.81 |
| 1,000+ | $4.58 | $4.58 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.00mm (0.079").
It has 10 positions arranged in 2 rows.
The maximum current rating is 3.3A per contact at 25°C ambient (one contact powered) and 3.0A when all contacts are powered.
It uses crimp termination for 22 AWG wire.
The mounting type is free hanging (in-line).
