Mfr Part #:

M80-8890405

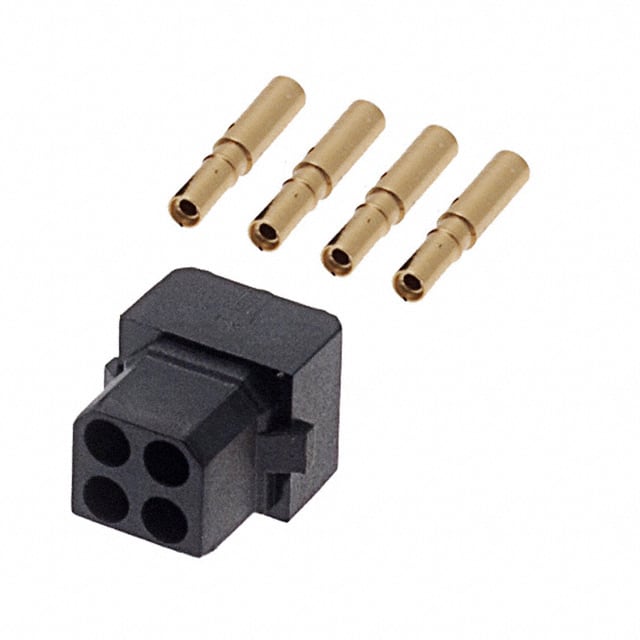

M80-8890405 is a 4-position female receptacle connector from Harwin's Datamate L-Tek series. It features 2.00mm pitch, crimp termination, and gold contacts for 22 AWG discrete wire.

✓ Total Stock: 101 pcs

$ Price Range: $2.05 - $3.57

M80-8890405 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Braun Electronic Components ✓ Non-Authorised Inventory information	101 pcs On Request	101 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

M80-8890405 Description

Short technical summary and product information.

The M80-8890405 is a 4-position female receptacle connector from the Datamate L-Tek series by Harwin Inc. It is designed for free hanging (in-line) cable-to-cable or cable-to-board applications. The connector has a 2.00mm pitch with 2 rows and a locking ramp fastening mechanism for secure mating. It accepts 22 AWG discrete wire with crimp termination. The contacts are gold plated with a thickness of 0.30µm. The connector is rated for currents up to 3.3A per contact (single contact loaded at 25°C) and 3.0A with all contacts loaded at 25°C. The black housing provides reliable insulation. This connector is RoHS3 compliant and has MSL 1. It is suitable for high-density packaging in industrial, automotive, and aerospace applications.

M80-8890405 Quick Information

Product Type: Rectangular Connector - Receptacle

Series: M80

Canonical Name: Harwin Inc. M80-8890405 4-Position Female Receptacle Connector, 2.00mm Pitch, Crimp Termination, 22 AWG, Gold

Subcategory: Free Hanging (In-Line)

M80-8890405 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

M80-8890405 Estimated Pricing

Qty	Low	High
1+	$3.57	$3.57
10+	$3.03	$3.03
25+	$2.84	$2.84
50+	$2.70	$2.70
100+	$2.58	$2.58
250+	$2.41	$2.41
500+	$2.30	$2.30
1,000+	$2.19	$2.19
2,500+	$2.05	$2.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

M80-8890405 Features

4-position female receptacle connector.
2.00mm pitch with 2 rows.
Crimp termination for 22 AWG wire.
Gold-plated contacts for reliability.
Locking ramp fastening mechanism.

M80-8890405 Applications

Used for cable-to-cable interconnections.
Ideal for high-density electronic packaging.
Suitable for industrial control systems.
Common in automotive and aerospace.

M80-8890405 FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the M80-8890405 have?

It has 4 positions (2+2 configuration).

What is the pitch of this connector?

The pitch is 2.00mm (0.079 inches).

What is the current rating of the M80-8890405?

3.3A per contact when one contact is loaded at 25°C, and 3.0A when all contacts are loaded at 25°C. At 85°C, ratings are 2.6A (single contact) and 2.2A (all contacts).

What wire gauge does this connector accept?

It accepts 22 AWG discrete wire.

What termination method is used?

Crimp termination.

What is the mounting type?

Free hanging (in-line).

Is the M80-8890405 RoHS compliant?

Yes, the database lists it as RoHS3 compliant, but this is unverified.

Category	Free Hanging, Panel Mount
Manufacturer Name	Harwin Inc.
Cable Termination	Crimp
Color	Black
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	11.8µin (0.30µm)
Contact Material	Brass or phosphor bronze (inferred from typical Harwin connectors)
Contact Type	Female Socket
Fastening Type	Locking Ramp
Lead Spacing	2.0 mm
Lead Style	Gold
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Number of Rows	2
Pitch	2.00mm (0.079")
Row Spacing	0.079" (2.00mm)
Termination Style	Crimp
Wire Gauge	22 AWG
Wire Type	Discrete
