| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
18 pcs
|
18 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Termination Style | |
| Wire Gauge | |
| Wire Type |

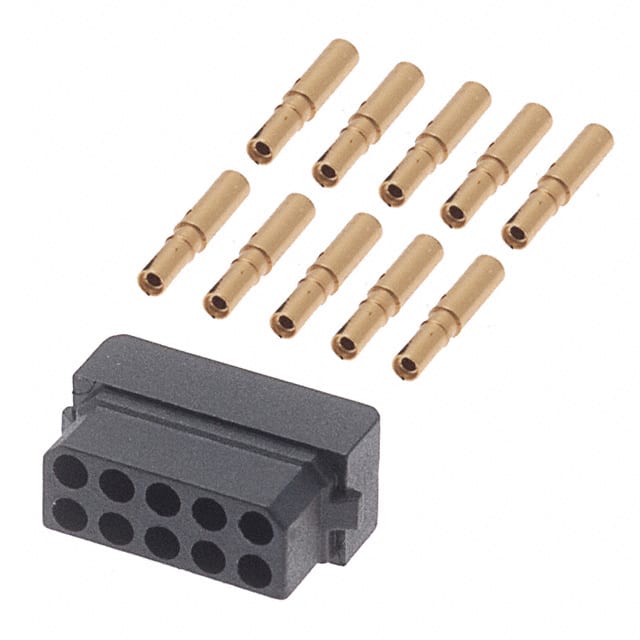

The M80-8881005 is a 10 position (5+5) female receptacle crimp connector from Harwin's Datamate L-Tek series. It is a complete connector kit that includes a double row straight cable housing and 10 straight signal contacts. The connector features a 2.00mm pitch and is designed for free hanging (in-line) cable mounting.
The connector accepts 24-28 AWG discrete wires with crimp termination. Contacts are gold plated with 11.8µin thickness for reliable low-resistance connections. The housing is black and features a locking ramp fastening type for secure mating with compatible male plug connectors.
Based on the M80 series specifications, the connector is rated for 3.0A maximum when all contacts are loaded at 25°C ambient (series rating, not guaranteed for this specific assembly). It is intended for low voltage applications in high-density electronic equipment.
The M80-8881005 is part of Harwin's high-reliability Datamate connector family, suitable for cable-to-board and cable-to-cable interconnections in demanding environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.46 | $7.46 |
| 10+ | $6.34 | $6.34 |
| 25+ | $5.94 | $5.94 |
| 50+ | $5.66 | $5.66 |
| 100+ | $5.39 | $5.39 |
| 250+ | $5.05 | $5.05 |
| 500+ | $4.81 | $4.81 |
| 1,000+ | $4.58 | $4.58 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions arranged in 2 rows (5+5).
2.00mm (0.079 inches).
Based on the M80 series datasheet, the maximum current rating is 3.0A when all contacts are loaded at 25°C ambient. This rating is not guaranteed for this specific assembly.
Free hanging (in-line) cable connector.
24-28 AWG discrete wires.
Gold plating with 11.8µin (0.30µm) thickness.
Locking ramp for secure mating with compatible male connectors.
