| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | 1848 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Tape & Reel | |
| Termination Style | |
| Wire Gauge | |
| Wire Type |

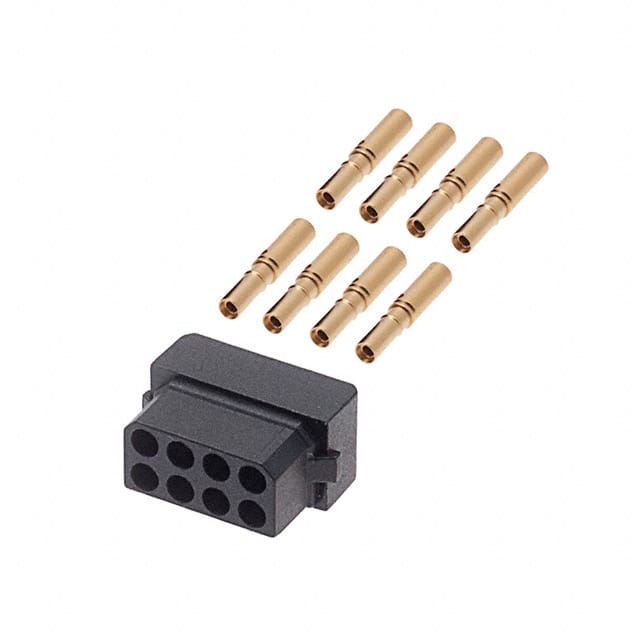

The Harwin M80-8880805 is a 4+4 position (8 total) female receptacle connector from the Datamate L-Tek series, designed for high-reliability interconnections in demanding electronic equipment. This connector features a 2.00mm pitch, dual-row configuration, and utilizes crimp termination for 24-28 AWG discrete wires. The gold-plated contacts ensure reliable signal integrity. The connector is free-hanging (in-line) and secured with a locking ramp fastening system. It is rated for up to 3.3A per contact at 25°C ambient. The black housing provides robust protection. This connector is suitable for cable-to-board or cable-to-cable applications where a compact, high-density connection is required. The Datamate L-Tek series offers a latching feature for secure mating.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.27 | $6.27 |
| 10+ | $5.32 | $5.32 |
| 25+ | $4.99 | $4.99 |
| 50+ | $4.75 | $4.75 |
| 100+ | $4.53 | $4.53 |
| 250+ | $4.24 | $4.24 |
| 500+ | $4.04 | $4.04 |
| 1,000+ | $3.85 | $3.85 |
| 2,500+ | $3.61 | $3.61 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 8 positions (4+4).
2.00mm (0.079 inches).
Up to 3.3A per contact at 25°C ambient (single contact), and 3.0A when all contacts are powered.
Free Hanging (In-Line).
24-28 AWG discrete wire.
Gold with 0.3µm thickness.
Locking Ramp.
