M80-8672022

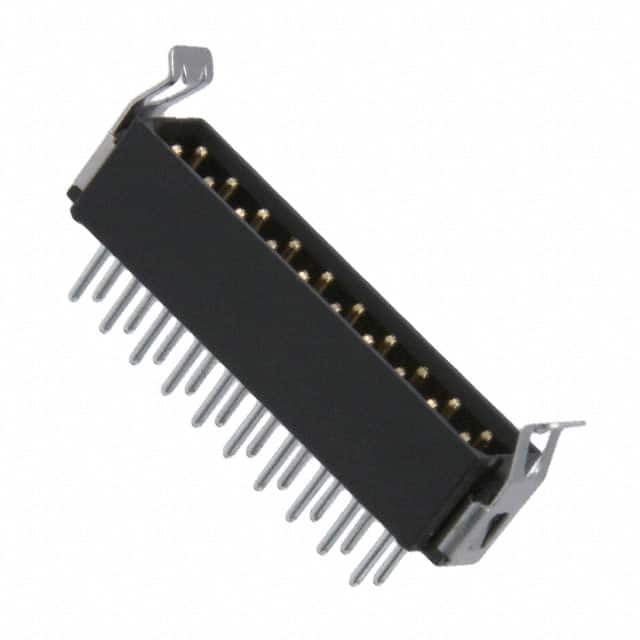

Harwin M80-8672022 is a high-reliability 20-contact male header connector from the Datamate L-Tek series. It features a 2.00mm pitch with dual rows (10+10 positions), through hole mounting, and a fully shrouded 4-wall design with integrated latch lock for secure mating. The contacts are made of phosphor bronze with a gold finish on mating areas and tin-lead on termination areas, ensuring reliable electrical performance. The connector is rated for 2.2A when all contacts are energized at 85°C ambient, with a maximum voltage rating of 800V. It operates over a wide temperature range from -55°C to 125°C and the insulation material is glass-filled polyester with UL94 V-0 flammability rating. Typical applications include board-to-board and cable-to-board interconnections in high-density electronic equipment. The male pins have a circular contact shape with a mating pin length of 3.00mm. This connector is part of the Datamate family designed for low-voltage, high-packing-density applications.
